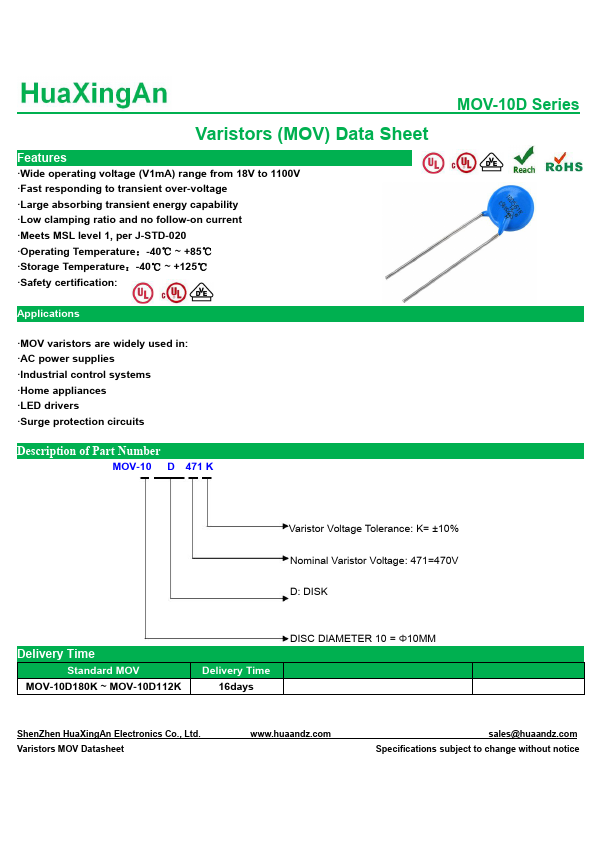

MOV-10D331K Datasheet PDF

FEATURES

●Wide operating voltage (V1mA) range from 18V to 1100V
●Fast responding to transient over-voltage
●Large absorbing transient energy capability
●Low clamping ratio and no follow-on current
●Meets MSL level 1, per J-STD-020
●Operating Temperature：-40℃ ~ +85℃
●Storage Temperature：-40℃ ~ +125℃
●Safety certification:

APPLICATIONS

●MOV varistors are widely used in:
●AC power supplies
●Industrial control systems
●Home appliances
●LED drivers
●Surge protection circuits

DESCRIPTION

of Part Number MOV-10 D 471 K MOV-10D Series Varistor Voltage Tolerance: K= ±10% Nominal Varistor Voltage: 471=470V D: DISK Delivery Time Standard MOV MOV-10D180K ~ MOV-10D112K Delivery Time 16days DISC DIAMETER 10 = Φ10MM ShenZhen HuaXingAn Electronics Co., Ltd. Varistors MOV Datasheet sales@huaandz.com Specifications subject to change without notice MOV-10D Series

ELECTRICAL CHARACTERISTICS

Part Number Maximum Allowable Voltage Varistor Voltage Maximum Clamping Voltage Max Surge Current 8/20μs Maximum Ener...
