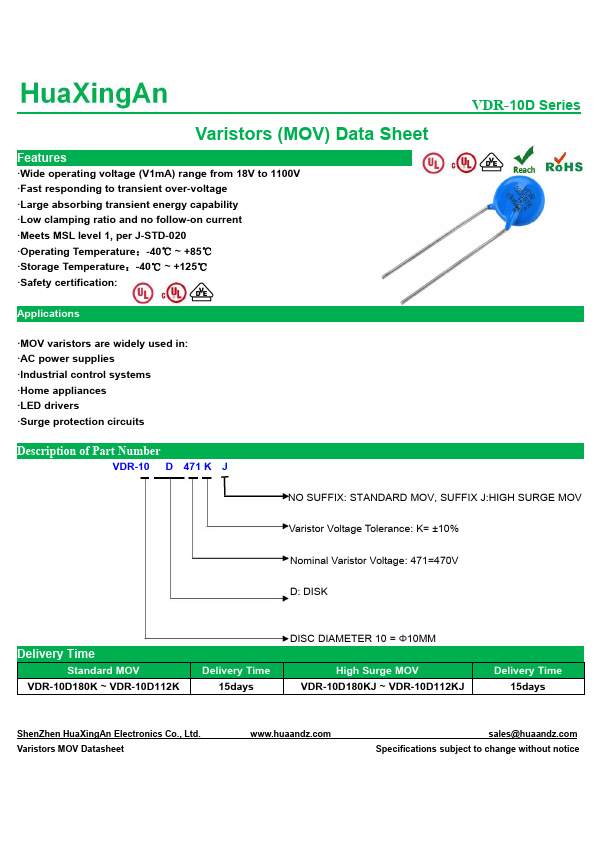

Description
of Part Number VDR-10 D 471 K J NO SUFFIX: STANDARD MOV, SUFFIX J:HIGH SURGE MOV Varistor Voltage Tolerance: K= ±10% Nominal Varistor Voltage: 471=470V D: DISK Delivery Time Standard MOV VDR-10D180K ~ VDR-10D112K DISC DIAMETER 10 = Φ10MM Delivery Time 15days High Surge MOV VDR-10D180KJ ~ VDR-10D112KJ Delivery Time 15days ShenZhen HuaXingAn Electronics Co., Ltd. Varistors MOV Datasheet sales@ Specifications subject to change without notice VDR-10D Series Part Number Maximum Allowable Voltage Varistor Voltage Maximum Clamping Voltage Max Surge Current 8/20μs Maximum Energy (10/1000μs) Standard MOV VAC(V) VDC(V) V1mA(V) VC(V) AT 25A Imax Standard (J) Standard VDR-10D180K 11V 14V 18V(16V~20V) 38V 500A 2.8J VDR-10D220K 14V 18V 22V(20V~24V) 43V 500A 4.5J VDR-10D270K 17V 22V 27V(24V~30V) 53V 500A 6.0J VDR-10D330K 20V 26V 33V(30V~36V) 65V 500A 7.4J VDR-10D390K 25V 31V 39V(35V~43V) 77V 500A 9.1J VDR-10D470K 30V 38V 47V(42V~52V) 93V 500A 10.8J VDR-10D560K 35V 45V 56V(50V~62V) 110V 500A 12.9J VDR-10D680K 40V 56V 68V(61V~75V) 135V 500A 15.4J VDR-10D820K 50V 65V 82V(74V~90V) 135V 2500A 16.8J VDR-10D101K 60V 85V 100V(90V~110V) 165V 2500A 18.2J VDR-10D121K 75V 100V 120V(108V~132V) 200V 2500A 21.0J VDR-10D151K 95V 125V 150V(135V~165V) 250V 2500A 25.2J VDR-10D181K 115V 150V 180V(162V~198V) 300V.
Key Features
- Wide operating voltage (V1mA) range from 18V to 1100V
- Fast responding to transient over-voltage
- Large absorbing transient energy capability
- Low clamping ratio and no follow-on current
- Meets MSL level 1, per J-STD-020
- Operating Temperature：-40℃ ~ +85℃
- Storage Temperature：-40℃ ~ +125℃
- Safety certification: VDR-10D Series
