Hanbit Electronics HFDOM40P-032Sx

The HFDOM40P-xxxSx series 40Pin Flash Disk Module is a flash technology based with True IDE interface flash memory card. It is constructed with flash disk controller chip and NAND-type (Samsung) flash memory device. The HFDOM40P-xxxSx series operates in both 3.3-Volt and 5.0-Volt power supplies.

Part No.	HFDOM40P-032Sx
Datasheet	HFDOM40P-032Sx Download
Manufacturer	Hanbit Electronics
Description	40Pin Flash Disk Module
Buy	Stock & Price

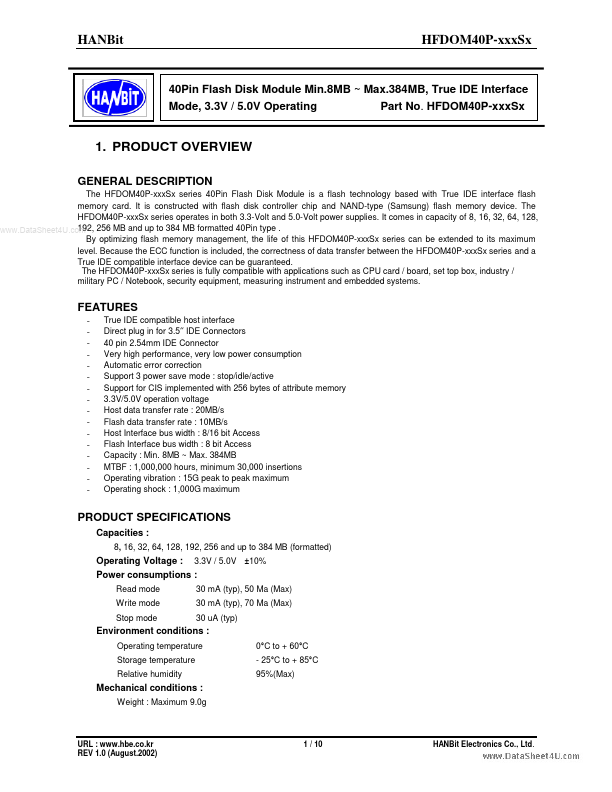

GENERAL DESCRIPTION

It comes in capacity of 8, 16, 32, 64, 128, 256 MB and up to 384 MB formatted 40Pin type . By optimizing flash memory management, the life of this HFDOM40P-xxxSx series can be extended to its maximum level. Because the ECC function is included, the correctness of data transfer between the HFDOM40P-xxxSx series and a True IDE compatible interface device can be guaranteed. The HFDOM40P-xxxSx series is fully compatible with applications such as CPU card / board, set top box, industry / military PC / Notebook, security equipment, measuring instrument and embedded systems.

FEATURES

- True IDE compatible host interface - Direct plug in for 3.5″ IDE Connectors - 40 pin 2.54mm IDE Connector - Very high performance, very low power consumption - Automatic error correction - Support 3 power save mode : stop/idle/active - Support for CIS implemented with 256 bytes of attribute memory - 3.3V/5.0V operation voltage - Host data transfer rate : 20MB/s - Flash data transfer rate : 10MB/s - Host Interface bus width : 8/16 bit Access - Flash Interface bus width : 8 bit Access - Capacity : Min.
