HSD121PHW1-A Key Features
- 12.1 (16:9 diagonal) inch configuration
- One channel LVDS interface
- 262K color by 6 bit R.G.B signal input
- RoHS pliance
- Halogen Free 1.3
- Part: HSD121PHW1-A
- Manufacturer: HannStar
- Size: 477.39 KB
Related HannStar Datasheets
| Part Number | Description |
|---|---|
| HSD121PHW1-A01 | Color TFT-LCD Module |
| HSD121PHW1-A03 | TFT LCD Panel |
| HSD121PHW1-B00 | TFT LCD Panel |
| HSD121PHW1 | Color TFT-LCD Module |
| HSD121PHW2-A | TFT LCD Panel |

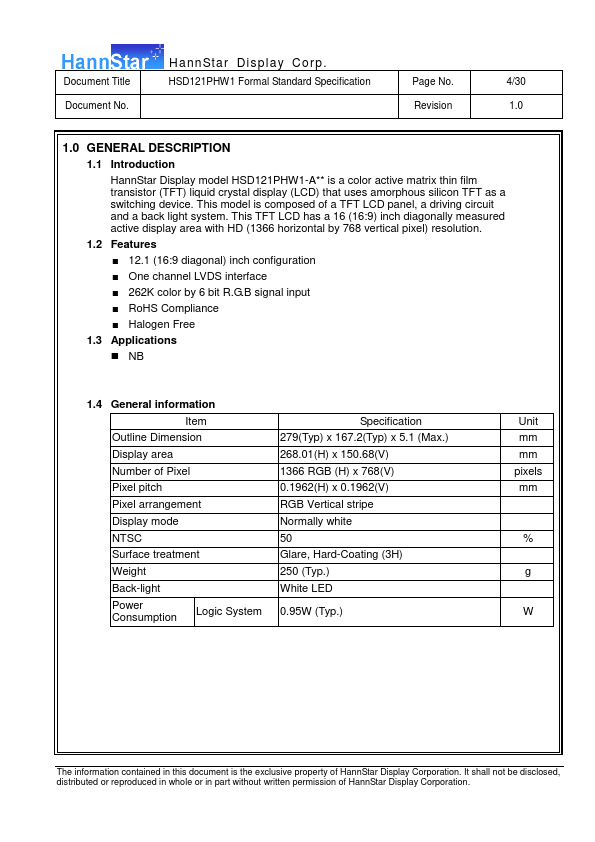

HSD121PHW1-A Description
1.1 Introduction HannStar Display model HSD121PHW1-A is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is posed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 16 (16:9) inch diagonally measured active display area with HD (1366 horizontal by 768 vertical pixel) resolution.
