HSD156JUW1-A00 Key Features
- 15.6 (16:9 diagonal) inch configuration
- Two channel LVDS interface
- 16.7M color by 8 bit R.G.B signal input
- RoHS pliance
- Halogen Free
- Part: HSD156JUW1-A00
- Manufacturer: HannStar
- Size: 631.49 KB
Related HannStar Datasheets
| Part Number | Description |
|---|---|
| HSD156JUW1-A | TFT LCD |
| HSD156JUW2-A12 | Color TFT-LCD |
| HSD156MGW1-Axx | TFT LCD Panel |
| HSD150MX14-A | TFT LCD Panel |
| HSD150MX15-B | Display |
HSD156JUW1-A00 Description

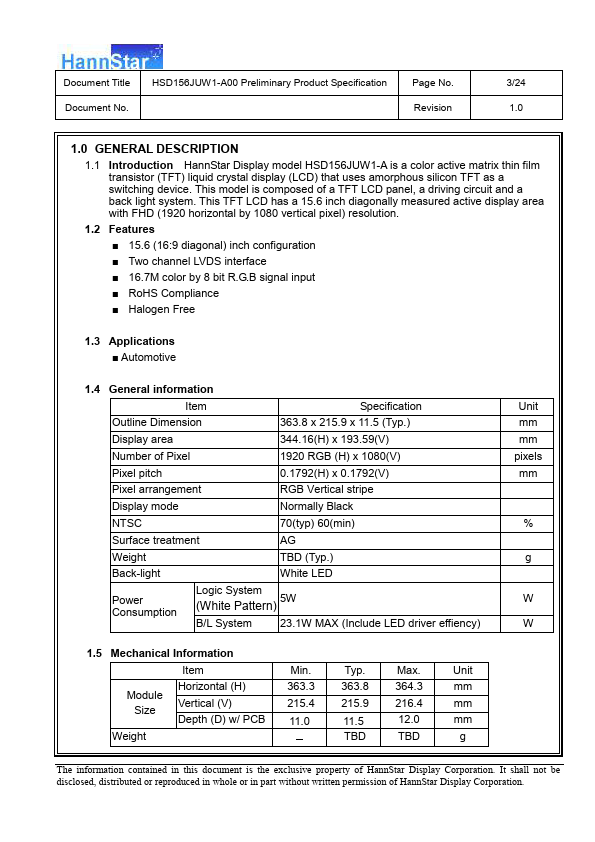

1.1 Introduction HannStar Display model HSD156JUW1-A is a color active matrix thin film transistor (TFT) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This model is posed of a TFT LCD panel, a driving circuit and a back light system. This TFT LCD has a 15.6 inch diagonally measured active display area with FHD (1920 horizontal by 1080 vertical pixel) resolution.
