HIS-07 - Ionization Smoke Chamber

📥 Download Datasheet

Datasheet Details

Part number HIS-07
Manufacturer Hanwei
File Size 150.53 KB
Description Ionization Smoke Chamber
Datasheet download datasheet HIS-07 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HIS-07 Fire Detection Systems ETC
HIS-0169C HIS-0169C ETC
HIS0169C HIS-0169C ETC
HISO HISO ETC

Other Datasheets by Hanwei

Part Number Description

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

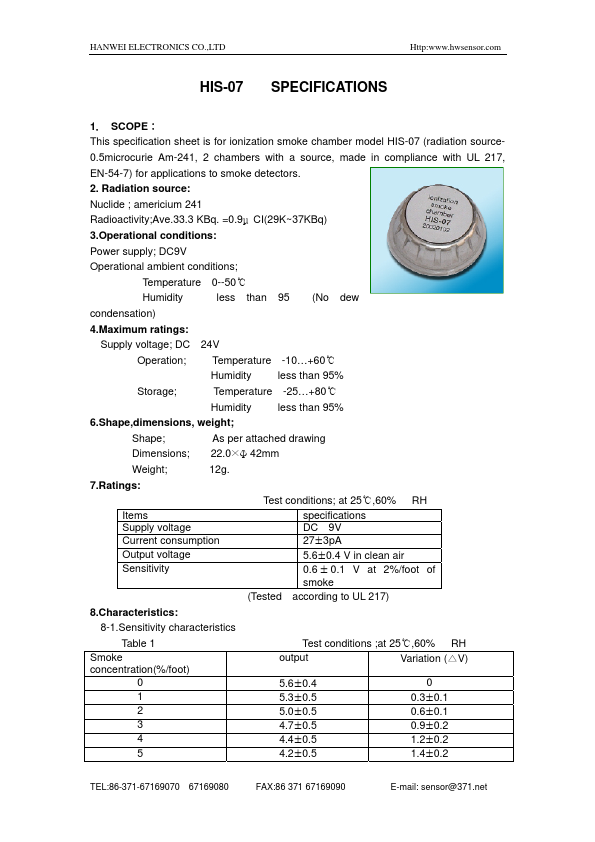

HANWEI ELECTRONICS CO.,LTD Http:www.hwsensor.com www.DataSheet4U.com HIS-07 SPECIFICATIONS 1． SCOPE： This specification sheet is for ionization smoke chamber model HIS-07 (radiation source0.5microcurie Am-241, 2 chambers with a source, made in compliance with UL 217, EN-54-7) for applications to smoke detectors. 2. Radiation source: Nuclide ; americium 241 Radioactivity;Ave.33.3 KBq. =0.9μ CI(29K~37KBq) 3.Operational conditions: Power supply; DC9V Operational ambient conditions; Temperature 0--50℃ Humidity less than condensation) 4.Maximum ratings: Supply voltage; DC Operation; Storage; 95 (No dew 24V Temperature -10…+60℃ Humidity less than 95% Temperature -25…+80℃ Humidity less than 95% 6.Shape,dimensions, weight; Shape; As per attached drawing Dimensions; 22.
