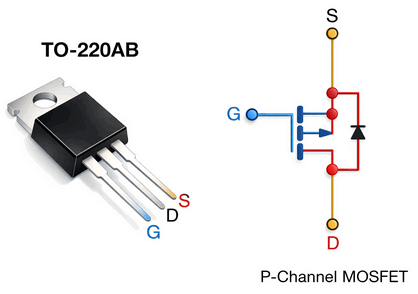

IRF9542 - P-Channel Power MOSFET

Download the IRF9542 datasheet PDF. This datasheet also covers the IRF9540 variant, as both devices belong to the same p-channel power mosfet family and are provided as variant models within a single manufacturer datasheet.

General Description

-15A and -19A, -80V and -100V rDS(ON) = 0.20Ω and 0.30Ω Single Pulse Avalanche Energy Rated SOA is Power Dissipation Limited Nanosecond Switching Speeds Linear Transfer Characteristics High Input Impedance Related Liter

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IRF9540-Harris.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number IRF9542
Manufacturer Harris
File Size 53.19 KB
Description P-Channel Power MOSFET
Datasheet download datasheet IRF9542 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IRF9542 P-Channel 100V MOSFET VBsemi
IRF9540 P-Channel Power MOSFET Intersil Corporation
IRF9540 Power MOSFET International Rectifier
IRF9540 P-Channel Power MOSFETs Fairchild Semiconductor
IRF9540 Power MOSFET Vishay

Other Datasheets by Harris

Part Number Description
IRF9540 P-Channel Power MOSFET
IRF9541 P-Channel Power MOSFET
IRF9543 P-Channel Power MOSFET
IRF140 N-Channel Power MOSFETs
IRF141 N-Channel Power MOSFETs

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text
Semiconductor July 1998 IRF9540, IRF9541, IRF9542, IRF9543, RF1S9540, RF1S9540SM -15A and -19A, -80V and -100V, 0.20 and 0.30 Ohm, P-Channel Power MOSFETs Features Description • -15A and -19A, -80V and -100V • rDS(ON) = 0.20Ω and 0.30Ω • Single Pulse Avalanche Energy Rated • SOA is Power Dissipation Limited • Nanosecond Switching Speeds • Linear Transfer Characteristics • High Input Impedance • Related Literature - TB334 “Guidelines for Soldering Surface Mount Components to PC Boards” Ordering Information PART NUMBER PACKAGE BRAND These are P-Channel enhancement mode silicon gate power field effect transistors. They are advanced power MOSFETs designed, tested, and guaranteed to withstand a specified level of energy in the breakdown avalanche mode of operation.
