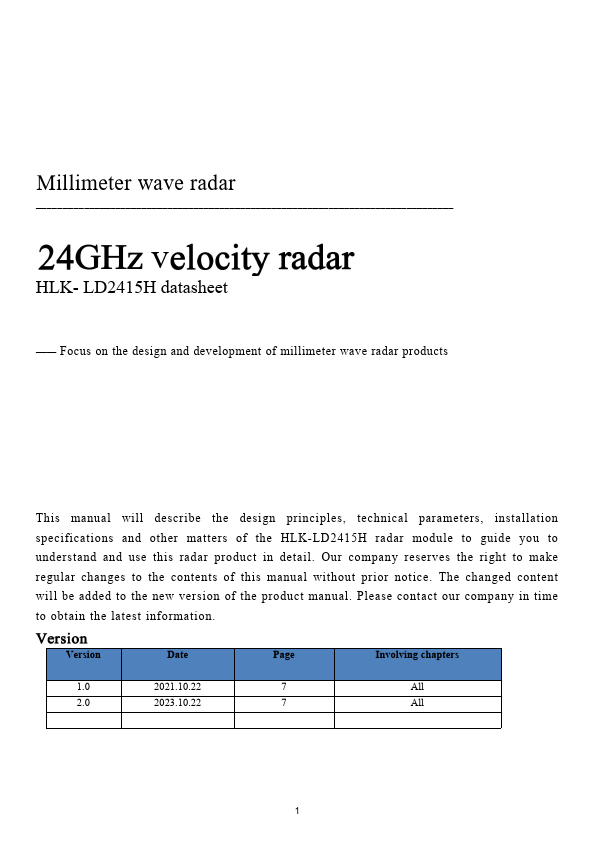

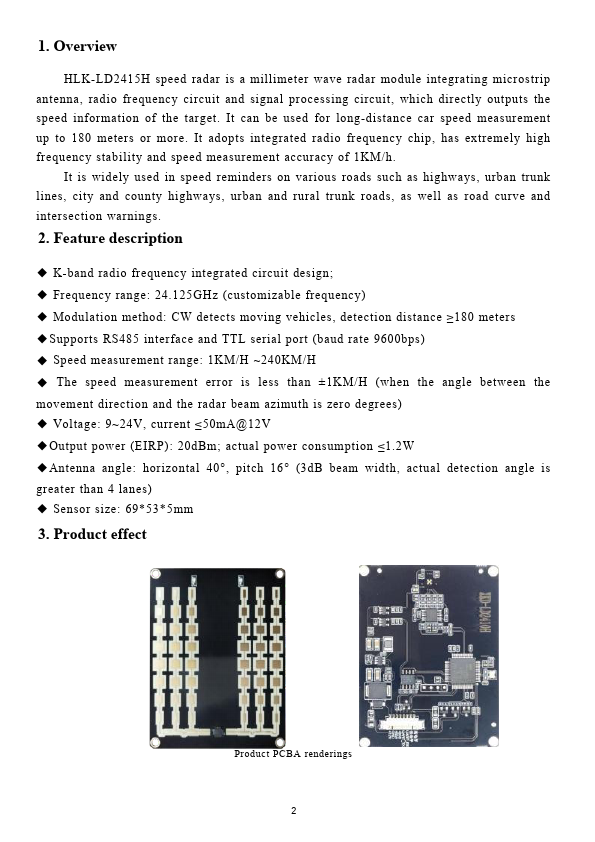

Millimeter wave radar ________________________________________________________________________________ v HLK- LD2415H datasheet - - Focus on the design and development of millimeter wave radar products This manual will describe the design principles, technical parameters, installation specifications and other matters of the HLK-LD2415H radar module to guide you to understand and use this radar product in detail. Our pany reserves the right to make regular changes to the contents of this manual without prior notice. The changed content will be added to the new version of the product manual. Please contact our pany in time to obtain the latest information. Version 1.0 2.0 Date 2021.10.22 2023.10.22 Page 7 7 Involving chapters All All 1. Overview HLK-LD2415H speed radar is a millimeter wave radar module integrating microstrip antenna, radio frequency circuit and signal processing circuit, which directly outputs the speed information of the target. It can be used for long-distance car speed measurement up to 180 meters or more. It adopts integrated radio frequency chip, has extremely high frequency stability and speed measurement accuracy of 1KM/h. It is widely used in speed reminders on various roads such as highways, urban trunk lines, city and county highways, urban and rural trunk roads, as well as road curve and intersection warnings. 2. Feature description - K-band radio frequency integrated circuit design; - Frequency range: 24.125GHz (customizable frequency) - Modulation method: CW detects moving vehicles, detection distance ≥180 meters - Supports RS485 interface and TTL serial port (baud rate 9600bps) - Speed measurement range: 1KM/H ~240KM/H - The speed measurement error is less than ±1KM/H (when the angle between the movement direction and the radar beam azimuth is zero degrees) - Voltage: 9~24V, current ≤50m A@12V - Output power (EIRP): 20d Bm; actual power consumption ≤1.2W - Antenna angle: horizontal 40°, pitch 16° (3d B beam width, actual...
