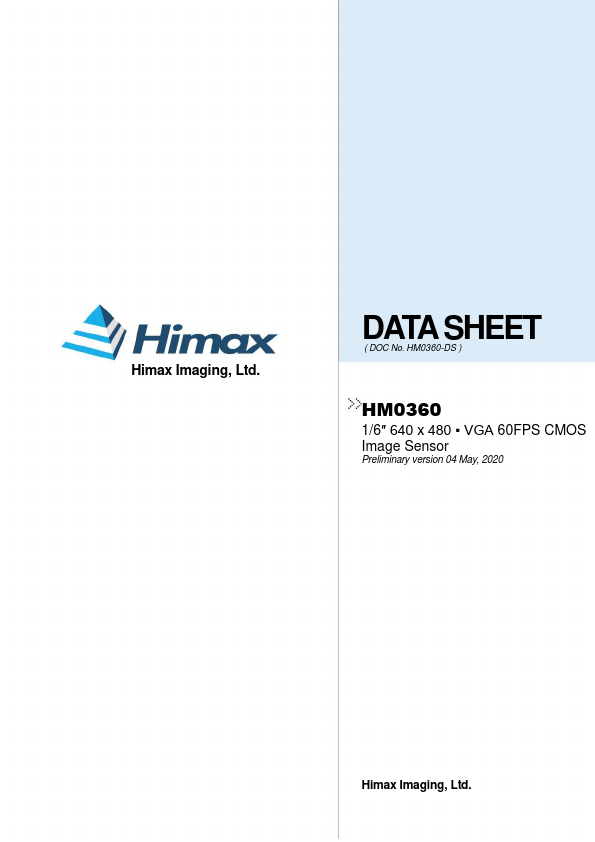

HM0360 - VGA 60FPS CMOS Image Sensor

Product Overview

Himax

Datasheet Details

Part number	HM0360
Manufacturer	Himax
File Size	3.45 MB
Description	VGA 60FPS CMOS Image Sensor
Datasheet	HM0360 Datasheet
Additional preview pages of the HM0360 datasheet.

Product details

Description

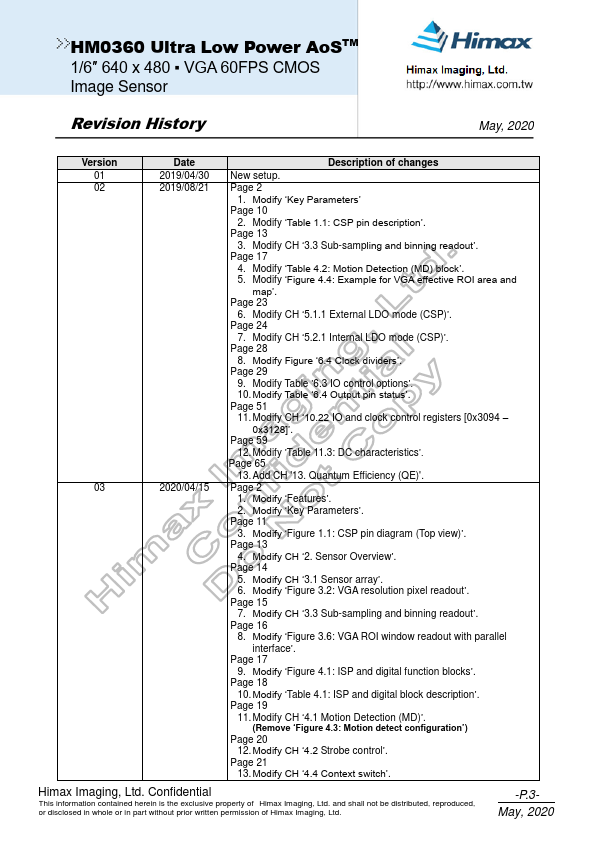

of changes New setup.Page 2 1. Modify ‘Key Parameters’ Page 10 2. Modify ‘Table 1.1: CSP pin description’.Page 13 3. Modify CH ‘3.3 Sub-sampling and binning readout’.Page 17 4. Modify ‘Table 4.2: Motion Detection (MD) block’.5. Modify ‘Figure 4.4: Example for VGA effective ROI area and map’.Page 23 6. Modify CH ‘5.1.1 External LDO mode (CSP)’.Page 24 7. Modify CH ‘5.2.1 Internal LDO mode (CSP)’.Page 28 8. Modify Figure ‘6.4 Clock dividers’.Page 29 9. Modify Table ’6.3 IO control options’

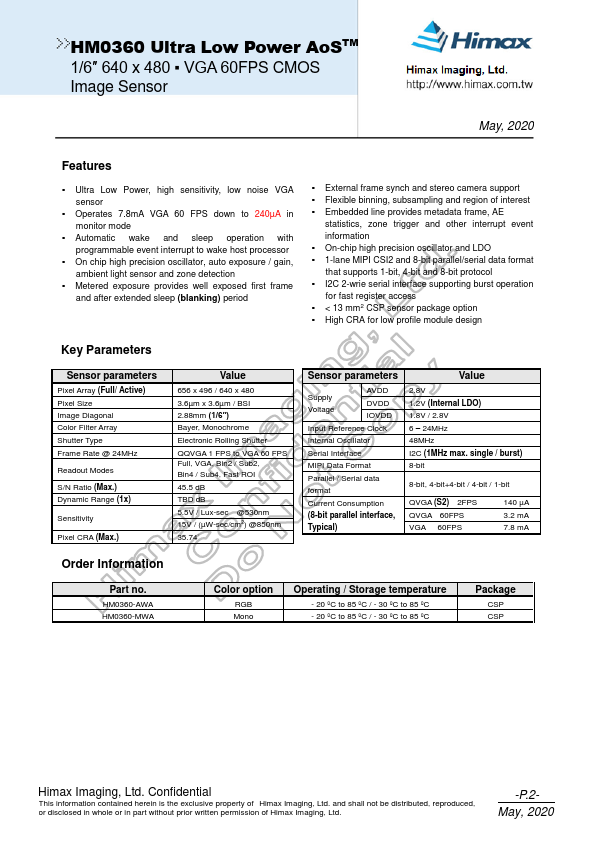

Features

Ultra Low Power, high sensitivity, low noise VGA sensor.
Operates 7.8mA VGA 60 FPS down to 240µA in monitor mode.
Automatic wake and sleep operation with programmable event interrupt to wake host processor.
On chip high precision oscillator, auto exposure / gain, ambient light sensor and zone detection.
Metered exposure provides well exposed first frame and after extended sleep (blanking) period.
External frame synch and stereo camera support.
Flexible binnin.
