HA17555
Key Features
- Mono multi vibrator can be constructed with one resistor and one capacitor
- Astable multi vibrator can be constructed with two resistors and one capacitor
- Delay time can be established widely from several µ seconds to several hours
- Pulse Duty can be controlled
- The maximum value of both sink current and source current is 200mA
- Direct connection of output to TTL is possible
- Temperature/delay time ratio is 50 ppm/°C (typ)
- Output is normally in the on and off states
Applications
- Delay Time Generator (Mono Multi Vibrator) Pulse Generator (Astable Multi Vibrator) Pulse Width Modulator Pulse Location Modulator Miss Pulse Detector

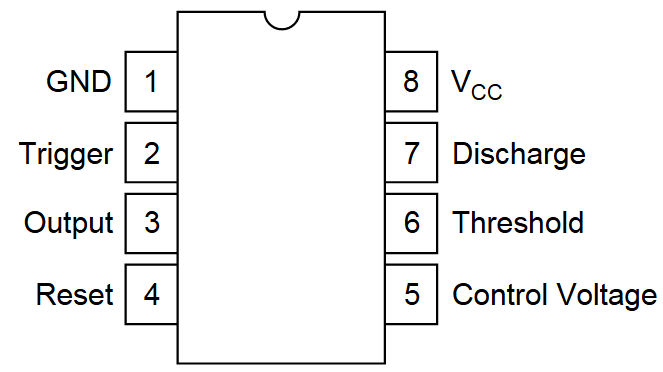

Representative HA17555 image (package may vary by manufacturer)
