Hitachi HD6432611
The FWE pin is provided only in the flash memory version. The NC pin is provided only in the mask ROM version.| Part No. | HD6432611 |
|---|---|
| Datasheet | HD6432611 Download |
| Manufacturer |  Hitachi |
| Description | 16-Bit Microcomputer |
| Buy | Stock & Price |

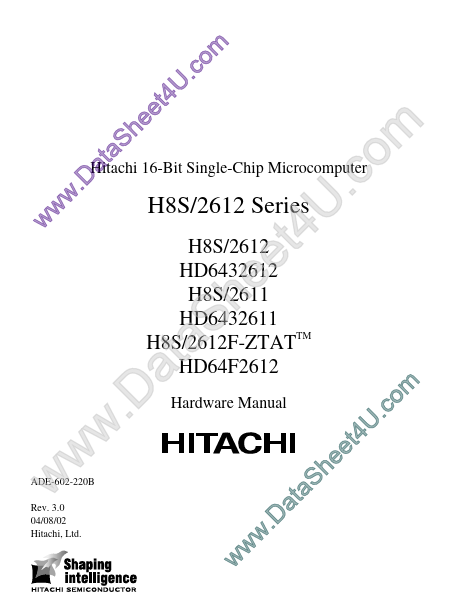

U.com t4 H8S/2612 e HD6432612 e H8S/2611 h HD6432611 S H8S/2612F-ZTATTM ww.Data ADE-602-220B wRev. 3.0 04/08/02 Hitachi, Ltd. HD64F2612 HardwarewMwawnu.aDl ataSheet4U.com Section 1 Overview 1.1 Overview
● High-speed H8S/2600 central processing unit with an internal 16-bit architecture Upward-compatible with H8/300 and H8/300H CPUs on an object level Sixteen 16-bit general registers 69 basic instructions
● Various peripheral functions PC break controller Data transfer controller 16-bit timer-pulse unit (TPU) Motor management timer (MMT) Programmable pulse generator (PPG) Watchdog timer Asynchronous or clocked synchronous serial communication interface (SCI) Hitachi controller area network (HCAN) 10-bit A/D converter Clock pulse generator
● On-chip memory ROM F-ZTAT Version Model HD64F2612 Mask ROM Version HD6432612 HD6432611 ROM 128k 128k 64k RAM 4k 4k 4k Remarks Under development In planning
● General I/O ports
● I/O pins: 43
● Input-only pins: 13
● Supports various power-down states
● Compact package Package QFP-80 (Code) FP-80A Body Size 14.0 × 14.0 mm Pin Pitch 0.65 mm Rev.
● High-speed H8S/2600 central processing unit with an internal 16-bit architecture Upward-compatible with H8/300 and H8/300H CPUs on an object level Sixteen 16-bit general registers 69 basic instructions
● Various peripheral functions PC break controller Data transfer controller 16-bit timer-pulse unit (TPU) Motor management timer (MMT) Programmable pulse generator (PPG) Watchdog timer Asynchronous or clocked synchronous serial communication interface (SCI) Hitachi controller area network (HCAN) 10-bit A/D converter Clock pulse generator
● On-chip memory ROM F-ZTAT Version Model HD64F2612 Mask ROM Version HD6432612 HD6432611 ROM 128k 128k 64k RAM 4k 4k 4k Remarks Under development In planning
● General I/O ports
● I/O pins: 43
● Input-only pins: 13
● Supports various power-down states
● Compact package Package QFP-80 (Code) FP-80A Body Size 14.0 × 14.0 mm Pin Pitch 0.65 mm Rev.
