LMG5320XUFC
LMG5320XUFC is LCD Module manufactured by Hitachi Semiconductor.
DIGITAL-LOGIC AG

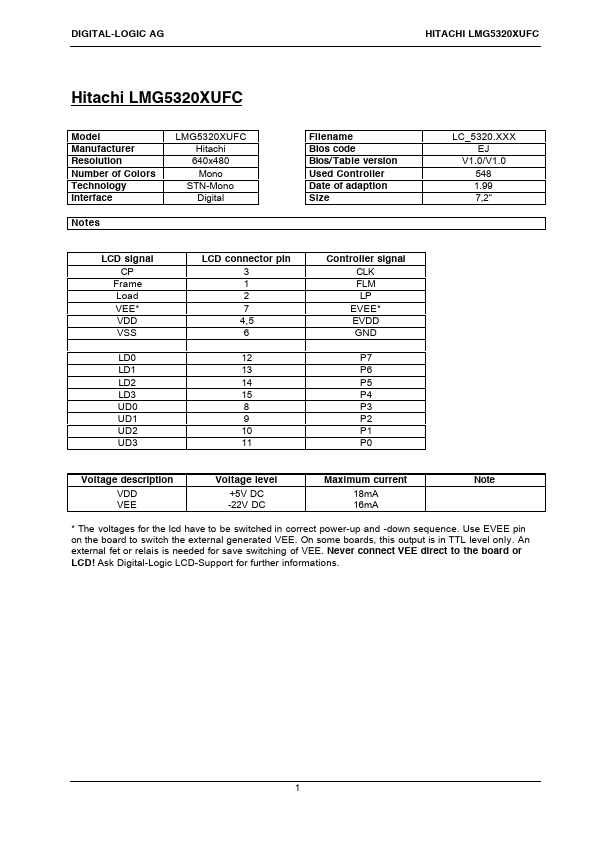

HITACHI LMG5320XUFC
Hitachi LMG5320XUFC
Model Manufacturer Resolution Number of Colors Technology Interface
Notes
LMG5320XUFC Hitachi 640x480 Mono
STN-Mono Digital
Filename Bios code Bios/ Table version Used Controller Date of adaption Size
LCD signal CP
Frame Load VEE- VDD VSS
LD0 LD1 LD2 LD3 UD0 UD1 UD2 UD3
LCD connector pin 3 1 2 7 4,5 6
12 13 14 15 8 9 10 11
Controller signal CLK FLM LP
EVEE- EVDD GND
P7 P6 P5 P4 P3 P2 P1 P0
LC_5320.XXX EJ
V1.0/V1.0 548 1.99 7,2“
Voltage description
VDD VEE
Voltage level
+5V DC -22V DC
Maximum current
18mA 16mA
Note
- The voltages for the lcd have to be switched in correct power-up and -down sequence. Use EVEE pin on the...
