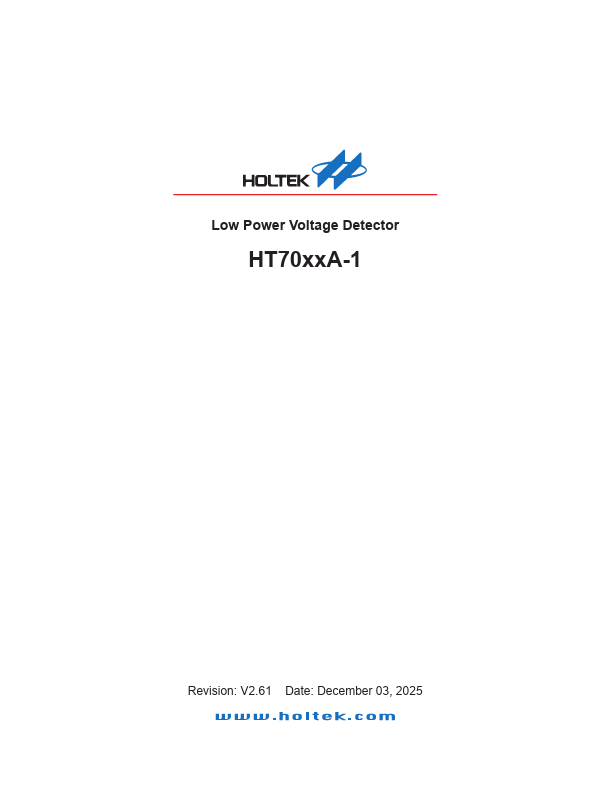

Datasheet Summary
Low Power Voltage Detector
HT70xxA-1
Revision: V2.61 Date: December 03, 2025
HT70xxA-1 Low Power Voltage Detector

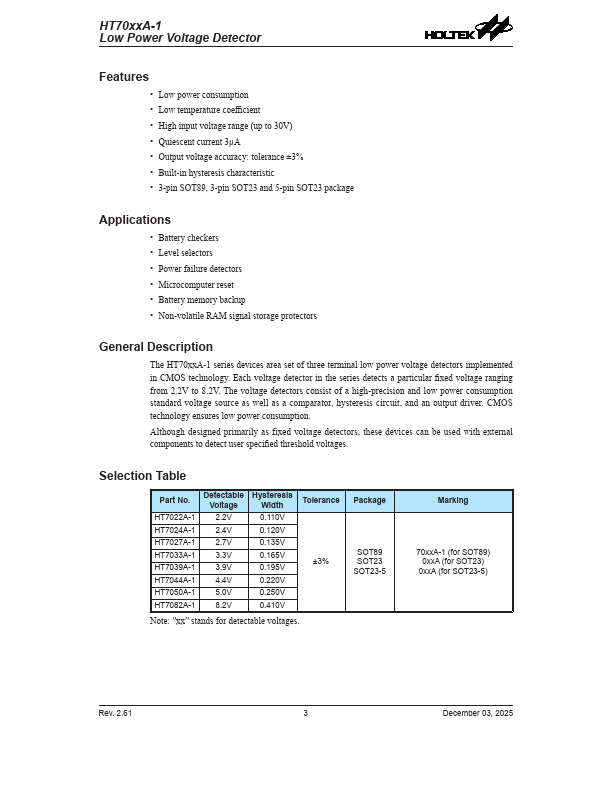

Features
- Low power consumption
- Low temperature coefficient
- High input voltage range (up to 30V)
- Quiescent current 3μA
- Output voltage accuracy: tolerance ±3%
- Built-in hysteresis characteristic
- 3-pin SOT89, 3-pin SOT23 and 5-pin SOT23 package
Applications
- Battery checkers
- Level selectors
- Power failure detectors
- Microputer reset
- Battery memory backup
- Non-volatile RAM signal storage protectors
General Description
The HT70xxA-1 series devices area set of three terminal low power voltage detectors implemented in CMOS technology. Each voltage detector...
