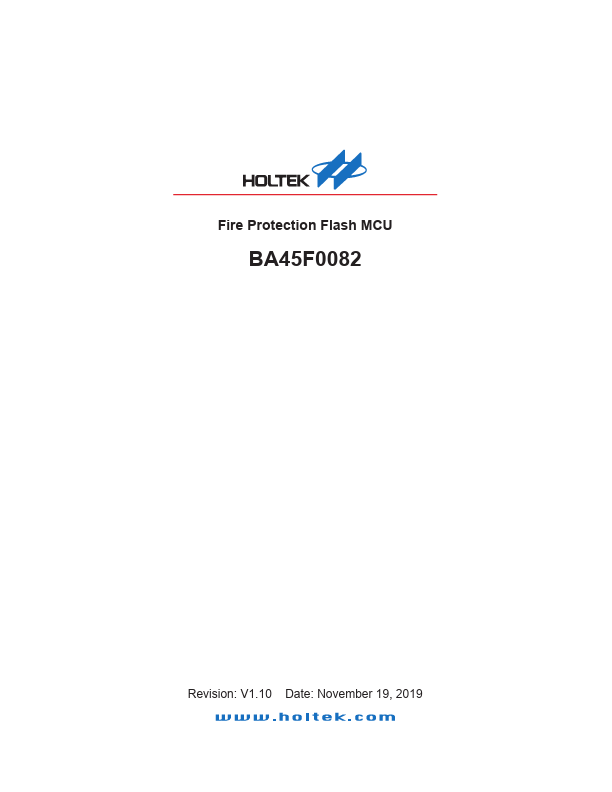

BA45F0082
BA45F0082 is Fire Protection Flash MCU manufactured by Holtek Semiconductor.
Fire Protection Flash MCU
Revision: V1.10 Date: November 19, 2019
BA45F0082 Fire Protection Flash MCU

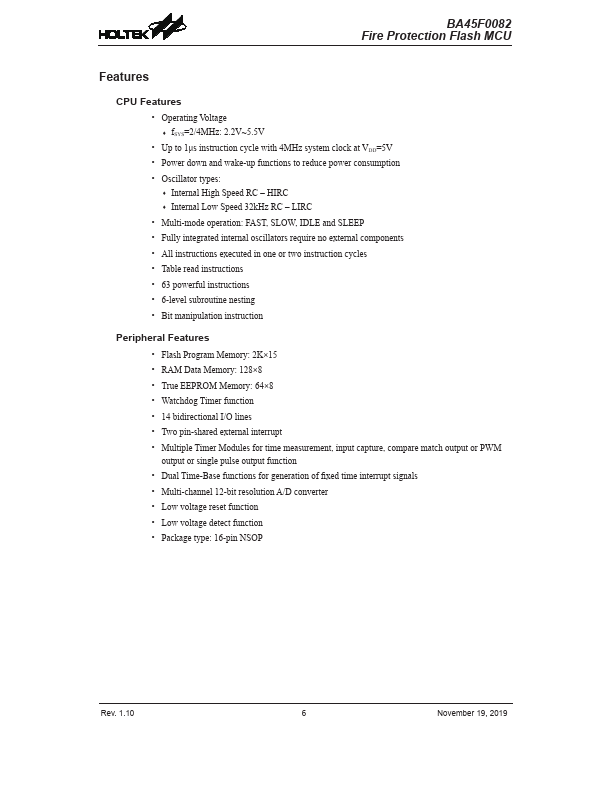

Features
CPU Features
- Operating Voltage
- f SYS=2/4MHz: 2.2V~5.5V
- Up to 1μs instruction cycle with 4MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types:
- Internal High Speed RC
- HIRC
- Internal Low Speed 32k Hz RC
- LIRC
- Multi-mode operation: FAST, SLOW, IDLE and SLEEP
- Fully integrated internal oscillators require no external ponents
- All instructions executed in one or two instruction cycles
- Table read instructions
- 63 powerful instructions
- 6-level subroutine nesting
- Bit manipulation instruction
Peripheral Features
- Flash Program Memory: 2K×15
- RAM Data Memory: 128×8
- True EEPROM Memory: 64×8
- Watchdog Timer function
- 14 bidirectional I/O lines
- Two pin-shared external interrupt
- Multiple Timer Modules for time measurement, input capture, pare match output or PWM output or single pulse output function
- Dual Time-Base functions for generation of fixed time interrupt...
