BS45F3833 Overview

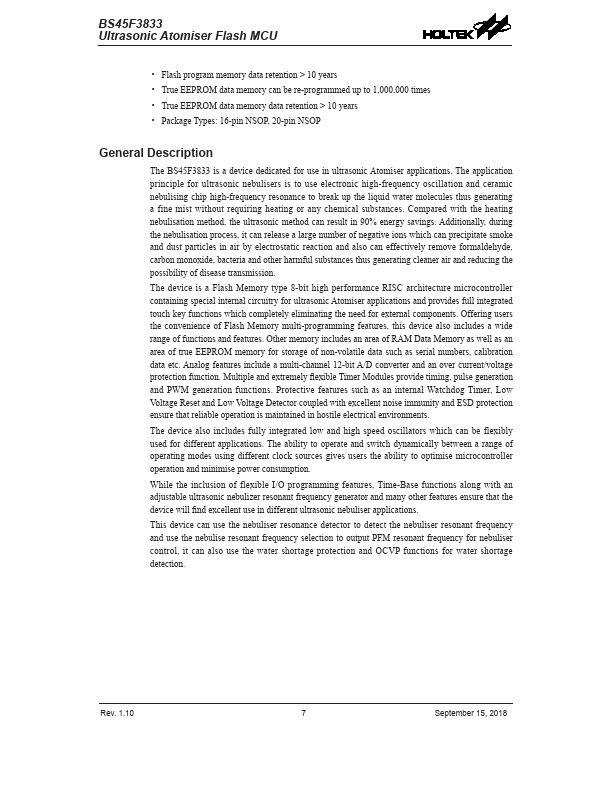

The BS45F3833 is a device dedicated for use in ultrasonic Atomiser applications. The application principle for ultrasonic nebulisers is to use electronic high-frequency oscillation and ceramic nebulising chip high-frequency resonance to break up the liquid water molecules thus generating a fine mist without requiring heating or any chemical substances. pared with the heating nebulisation method, the ultrasonic...

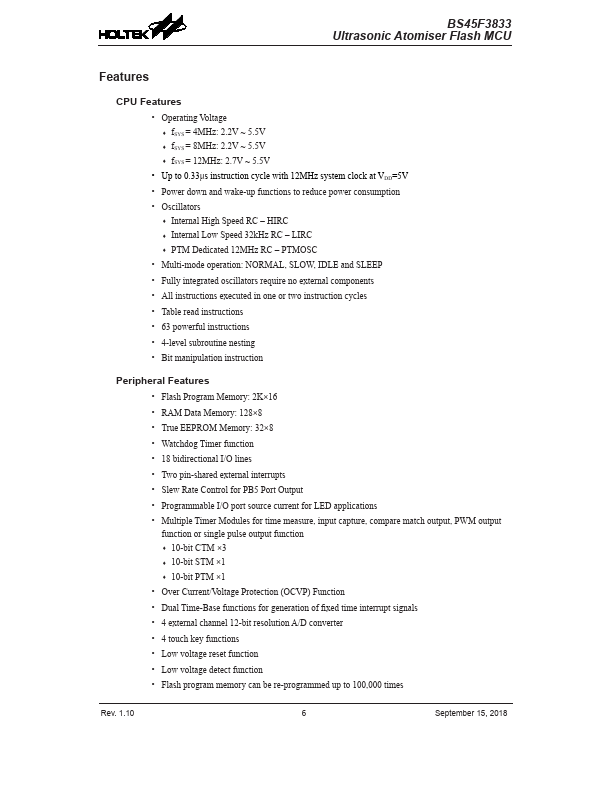

BS45F3833 Key Features
- Up to 0.33μs instruction cycle with 12MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillators -- Internal High Speed RC
- HIRC -- Internal Low Speed 32kHz RC
- LIRC -- PTM Dedicated 12MHz RC
- PTMOSC
- Multi-mode operation: NORMAL, SLOW, IDLE and SLEEP
- Fully integrated oscillators require no external ponents
- All instructions executed in one or two instruction cycles
- Table read instructions
BS45F3833 Applications
- Multiple Timer Modules for time measure, input capture, pare match output, PWM output function or single pulse output function ♦♦ 10-bit CTM ×3 ♦♦ 10-bit STM ×1
- Over Current/Voltage Protection (OCVP) Function
- Dual Time-Base functions for generation of fixed time interrupt signals
