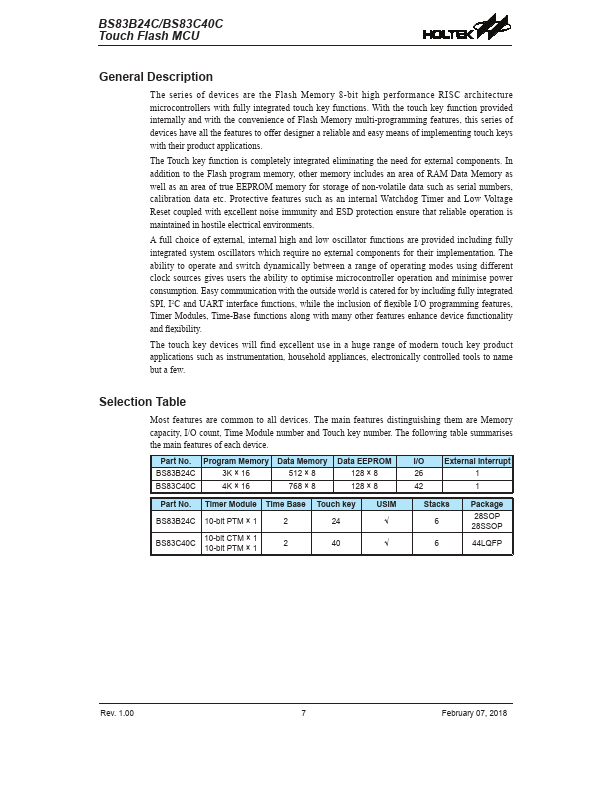

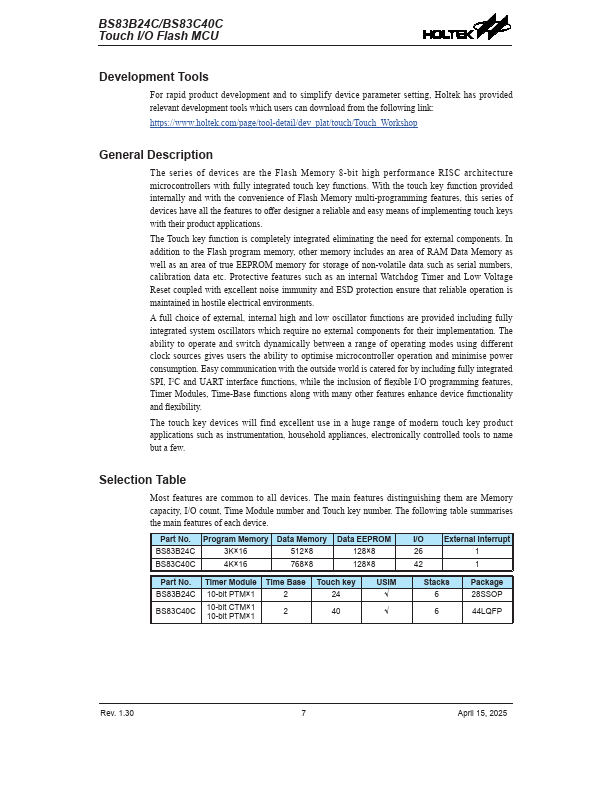

BS83B24C Overview
The series of devices are the Flash Memory 8-bit high performance RISC architecture microcontrollers with fully integrated touch key functions. With the touch key function provided internally and with the convenience of Flash Memory multi-programming.

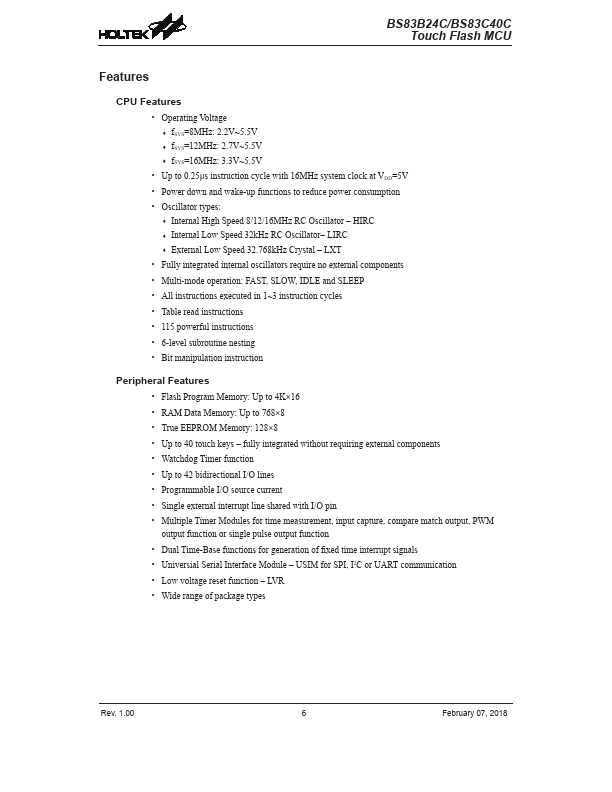

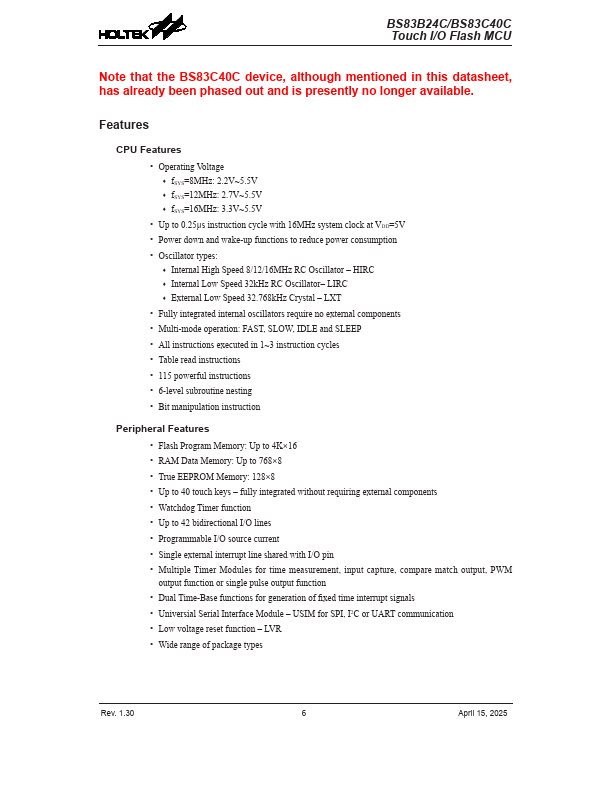

BS83B24C Key Features
- Operating Voltage -- fSYS=8MHz: 2.2V~5.5V -- fSYS=12MHz: 2.7V~5.5V -- fSYS=16MHz: 3.3V~5.5V
- Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types: -- Internal High Speed 8/12/16MHz RC Oscillator
- HIRC -- Internal Low Speed 32kHz RC Oscillator- LIRC -- External Low Speed 32.768kHz Crystal
- Fully integrated internal oscillators require no external ponents
- Multi-mode operation: FAST, SLOW, IDLE and SLEEP
- All instructions executed in 1~3 instruction cycles
- Table read instructions
- 115 powerful instructions
