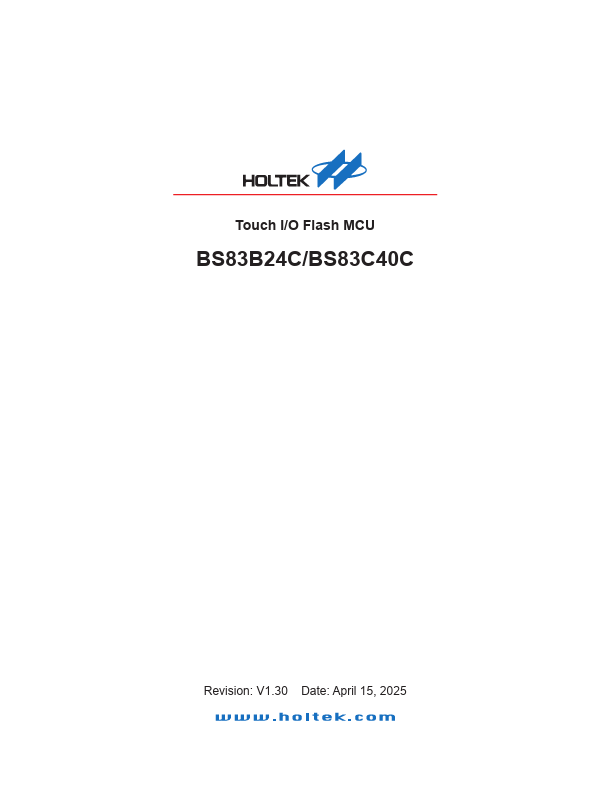

Datasheet Summary
Touch I/O Flash MCU
BS83B24C/BS83C40C
Revision: V1.30 Date: April 15, 2025
BS83B24C/BS83C40C Touch I/O Flash MCU

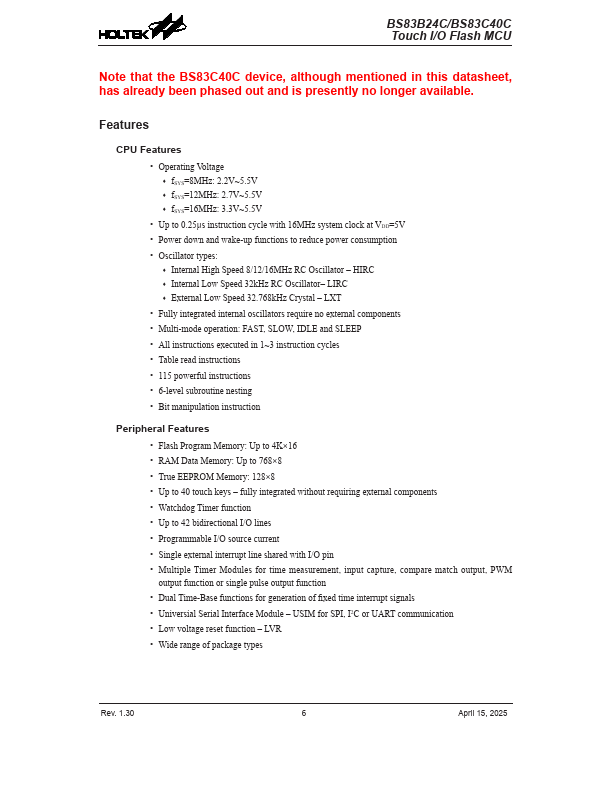

Note that the BS83C40C device, although mentioned in this datasheet, has already been phased out and is presently no longer available.

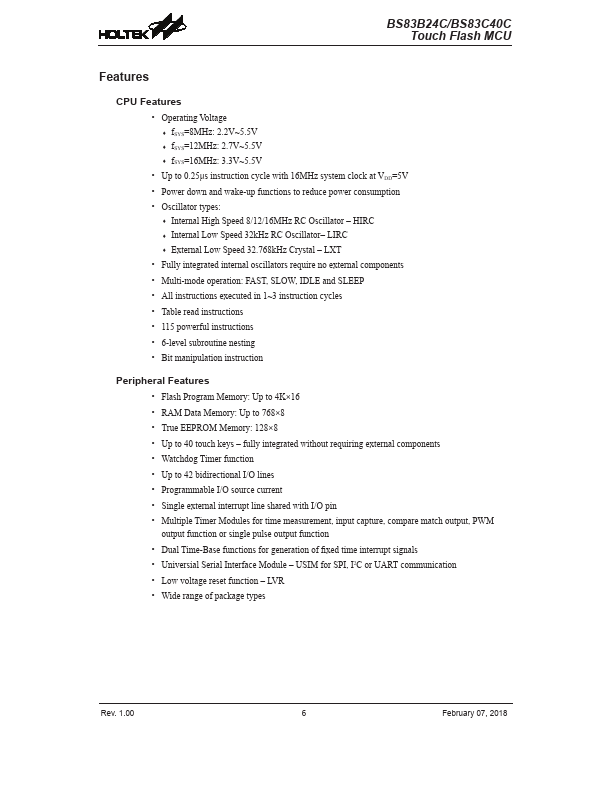

Features
CPU Features
- Operating Voltage
- fSYS=8MHz: 2.2V~5.5V
- fSYS=12MHz: 2.7V~5.5V
- fSYS=16MHz: 3.3V~5.5V
- Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types:
- Internal High Speed 8/12/16MHz RC Oscillator
- HIRC
- Internal Low Speed 32kHz RC Oscillator- LIRC
- External Low Speed 32.768kHz Crystal
- LXT
- Fully integrated internal oscillators...
