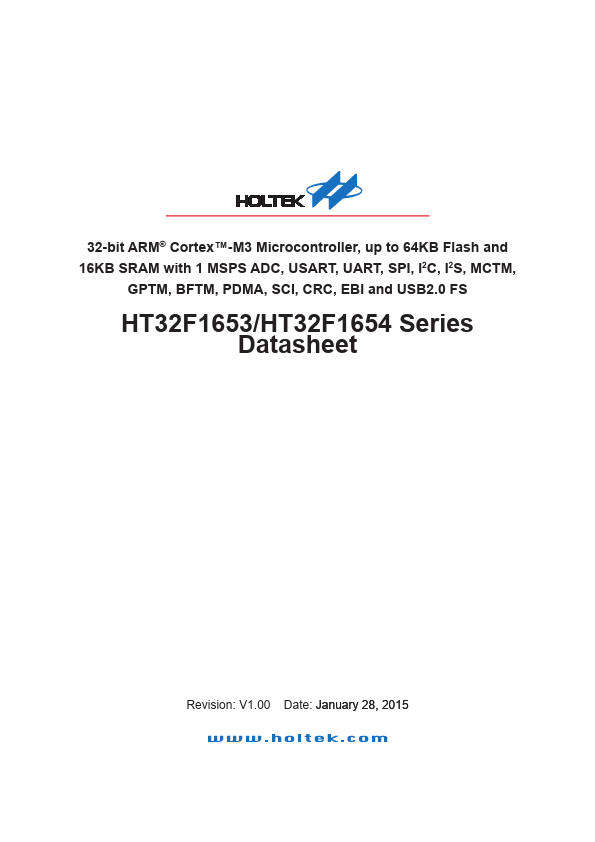

HT32F1653 Datasheet | Holtek Semiconductor

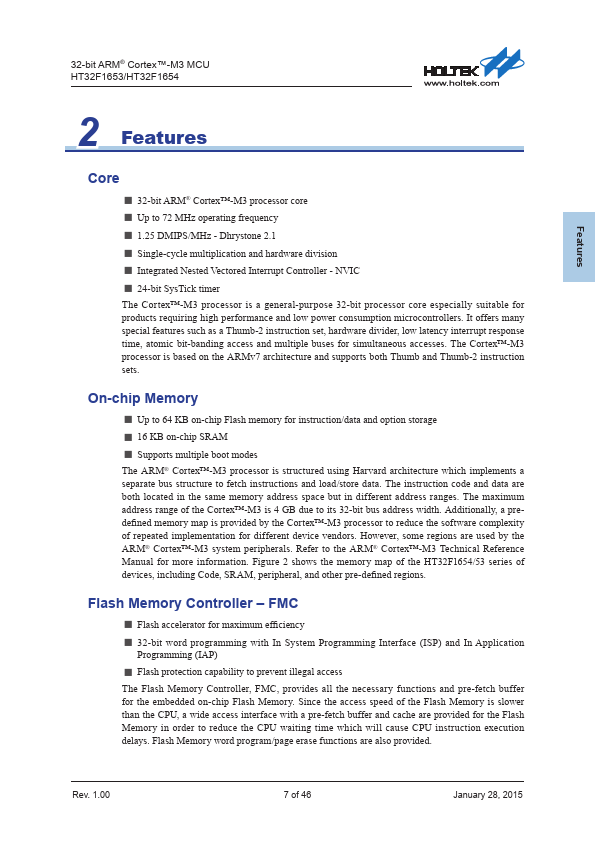

Description The Holtek HT32F1654/1653 devices are high performance, low power consumption 32-bit microcontrollers based around an ARM® Cortex™-M3 processor core. The Cortex™-M3 is a nextgeneration processor core which is tightly coupled with a Nested Vectored Interrupt Controller (NVIC), Sys Tick timer and which includes advanced debug support. The devices operate at a frequency of up to 72MHz with a Flash accelerator to obtain maximum efficiency. They provide up to 64KB of embedded Flash memory for code/data storage and 16KB of embedded SRAM memory for system operation and application program usage. A variety of peripherals, such as ADC, I2C, USART, UART, SPI, I2S, PDMA, GPTM, MCTM, SCI, EBI, CRC16/32, USB2.0 FS, SW-DP (Serial Wire Debug Port), etc., are also implemented in the devices. Several power saving modes provide the flexibility for maximum optimisation between wakeup latency and power consumption, an especially important consideration in low power applications. The above features ensure that the devices are suitable for use in a wide range of applications, especially in areas such as white goods application control, power monitors, alarm systems, consumer products, handheld equipment, data logging applications, motor control, fingerprint recognition and so on. General Description Rev. 1.00 6 of 46 January 28, 2015 Features 32-bit ARM® Cortex™-M3 MCU HT32F1653/HT32F1654 2 Features Core - - 32-bit ARM® Cortex™-M3 processor core - - Up to 72 MHz operating frequency - - 1.25 DMIPS/MHz - Dhrystone 2.1 - - Single-cycle multiplication and hardware division - - Integrated Nested Vectored Interrupt Controller - NVIC - - 24-bit Sys Tick timer The Cortex™-M3 processor is a general-purpose 32-bit processor core especially suitable for products requiring high performance and low power consumption microcontrollers. It offers many special features such as a Thumb-2 instruction set, hardware divider, low latency interrupt response time, atomic bit-banding access and...
