HT45F4830
HT45F4830 is Digital Servo Flash MCU manufactured by Holtek Semiconductor.
Digital Servo Flash MCU with Driver
Revision: V1.40 Date: November 20, 2019
HT45F4830 Digital Servo Flash MCU with Driver

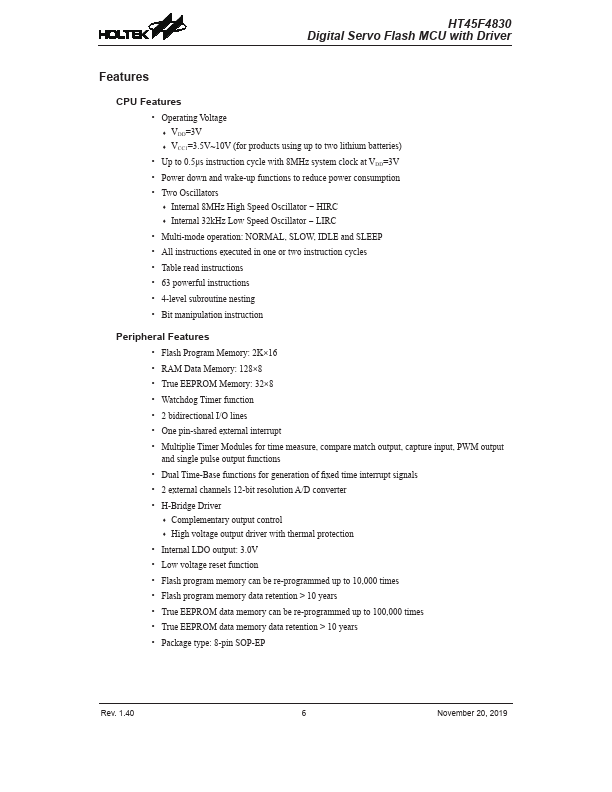

Features
CPU Features
- Operating Voltage
- VDD=3V
- VCC1=3.5V~10V (for products using up to two lithium batteries)
- Up to 0.5μs instruction cycle with 8MHz system clock at VDD=3V
- Power down and wake-up functions to reduce power consumption
- Two Oscillators
- Internal 8MHz High Speed Oscillator
- HIRC
- Internal 32k Hz Low Speed Oscillator
- LIRC
- Multi-mode operation: NORMAL, SLOW, IDLE and SLEEP
- All instructions executed in one or two instruction cycles
- Table read instructions
- 63 powerful instructions
- 4-level subroutine nesting
- Bit manipulation instruction
Peripheral Features
- Flash Program Memory: 2K×16
- RAM Data Memory: 128×8
- True EEPROM Memory: 32×8
- Watchdog Timer function
- 2 bidirectional I/O lines
- One pin-shared external interrupt
- Multiplie Timer Modules for time measure, pare match output, capture input, PWM output and single pulse output functions
- Dual Time-Base functions for generation of fixed time interrupt...
