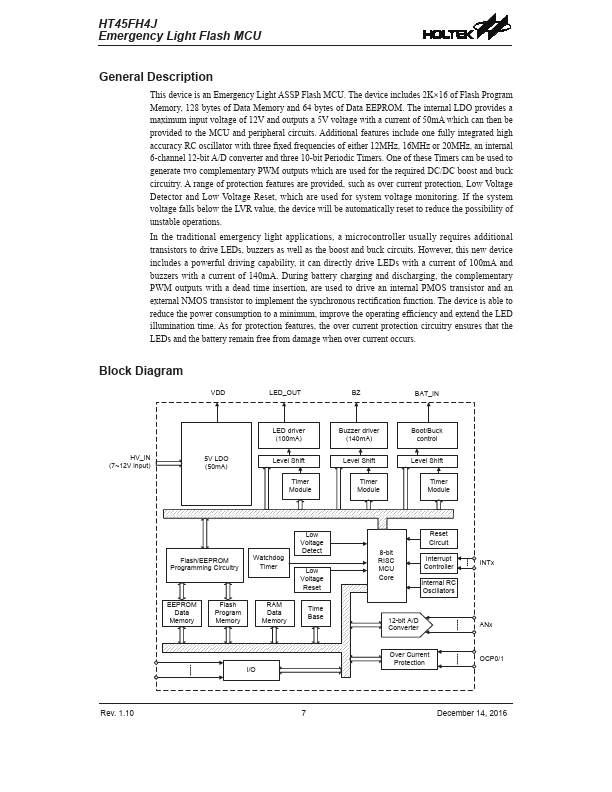

HT45FH4J Description
This device is an Emergency Light ASSP Flash MCU. The device includes 2K×16 of Flash Program Memory, 128 bytes of Data Memory and 64 bytes of Data EEPROM. The internal LDO provides a maximum input voltage of 12V and outputs a 5V voltage with a current of 50mA which can then be provided to the MCU and peripheral circuits.

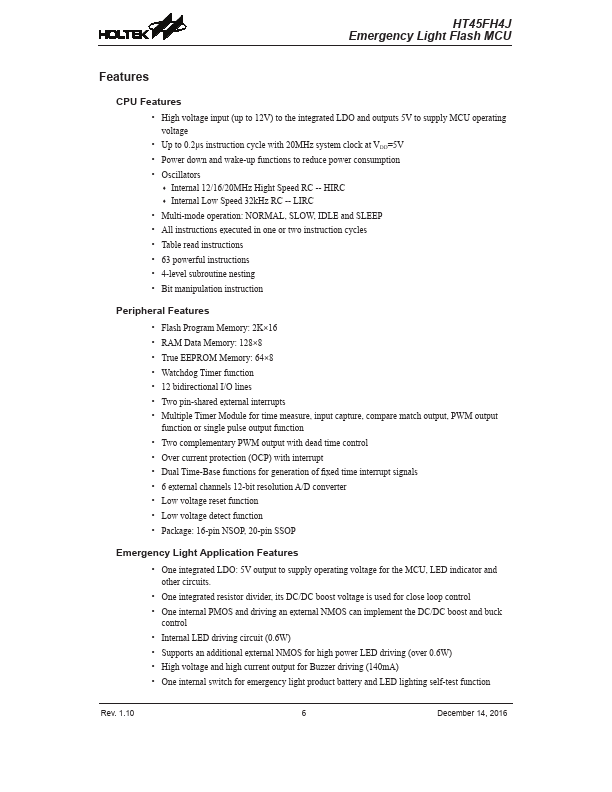

HT45FH4J Key Features
- High voltage input (up to 12V) to the integrated LDO and outputs 5V to supply MCU operating voltage
- Up to 0.2μs instruction cycle with 20MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillators -- Internal 12/16/20MHz Hight Speed RC -- HIRC -- Internal Low Speed 32kHz RC -- LIRC
- Multi-mode operation: NORMAL, SLOW, IDLE and SLEEP
- All instructions executed in one or two instruction cycles
- Table read instructions
- 63 powerful instructions
- 4-level subroutine nesting
- Bit manipulation instruction
