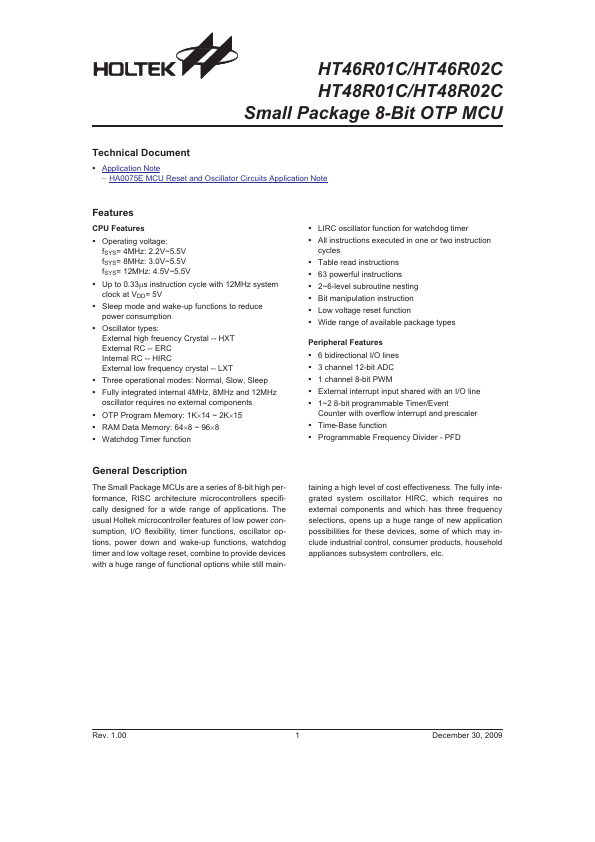

HT46R01C/HT46R02C HT48R01C/HT48R02C Small Package 8-Bit OTP MCU Technical Document - Application Note - HA0075E MCU Reset and Oscillator Circuits Application Note Features CPU Features - Operating voltage: f SYS= 4MHz: 2.2V~5.5V f SYS= 8MHz: 3.0V~5.5V f SYS= 12MHz: 4.5V~5.5V - Up to 0.33ms instruction cycle with 12MHz system clock at VDD= 5V - Sleep mode and wake-up functions to reduce power consumption - Oscillator types: External high freuency Crystal -- HXT External RC -- ERC Internal RC -- HIRC External low frequency crystal -- LXT - Three operational modes: Normal, Slow, Sleep - Fully integrated internal 4MHz, 8MHz and 12MHz oscillator requires no external ponents - OTP Program Memory: 1K´14 ~ 2K´15 - RAM Data Memory: 64´8 ~ 96´8 - Watchdog Timer function - LIRC oscillator function for watchdog timer - All instructions executed in one or two instruction cycles - Table read instructions - 63 powerful instructions - 2~6-level subroutine nesting - Bit manipulation instruction - Low voltage reset function - Wide range of available package types Peripheral Features - 6 bidirectional I/O lines - 3 channel 12-bit ADC - 1 channel 8-bit PWM - External interrupt input shared with an I/O line - 1~2 8-bit programmable Timer/Event Counter with overflow interrupt and...
