HT66F0175
HT66F0175 is A/D Flash MCU manufactured by Holtek Semiconductor.

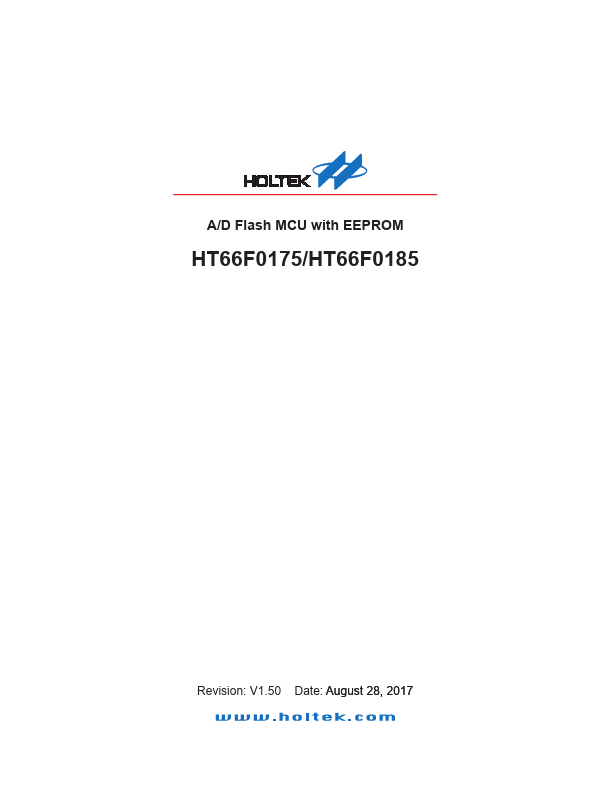

A/D Flash MCU with EEPROM
HT66F0175/HT66F0185
Revision: V1.50 Date:
- Au- g- u-
- s- t-
- 28- ,-
- - 2- 0- 1- 7
HT66F0175/HT66F0185 A/D Flash MCU with EEPROM

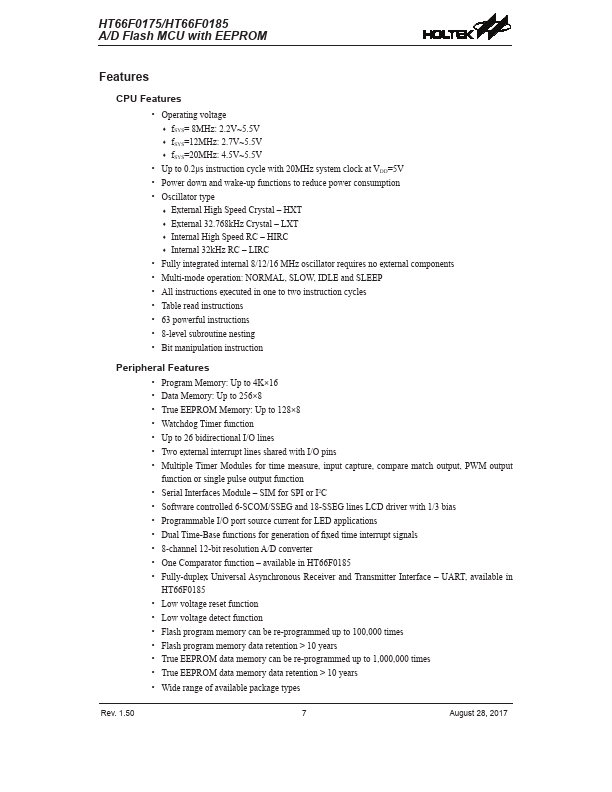

Features
CPU Features
- Operating voltage
- - fSYS= 8MHz: 2.2V~5.5V
- - fSYS=12MHz: 2.7V~5.5V
- - fSYS=20MHz: 4.5V~5.5V
- Up to 0.2μs instruction cycle with 20MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator type
- - External High Speed Crystal
- HXT
- - External 32.768kHz Crystal
- LXT
- - Internal High Speed RC
- HIRC
- - Internal 32kHz RC
- LIRC
- Fully integrated internal 8/12/16 MHz oscillator requires no external ponents
- Multi-mode operation: NORMAL, SLOW, IDLE and SLEEP
- All instructions...
