HT66F3195
HT66F3195 is A/D Flash MCU manufactured by Holtek Semiconductor.
A/D Flash MCU with EEPROM
Revision: V2.53 Date: February 25, 2025
HT66F3195 A/D Flash MCU with EEPROM

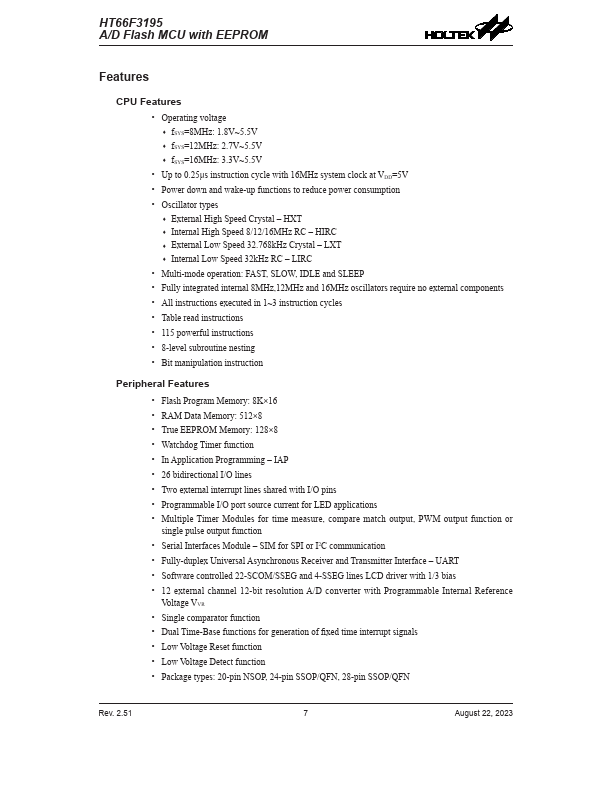

Features
CPU Features
- Operating voltage
- f SYS=8MHz: 1.8V~5.5V
- f SYS=12MHz: 2.7V~5.5V
- f SYS=16MHz: 3.3V~5.5V
- Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types
- External High Speed Crystal
- HXT
- Internal High Speed 8/12/16MHz RC
- HIRC
- External Low Speed 32.768k Hz Crystal
- LXT
- Internal Low Speed 32k Hz RC
- LIRC
- Multi-mode operation: FAST, SLOW, IDLE and SLEEP
- Fully integrated internal 8MHz,12MHz and 16MHz oscillators require no external ponents
- All instructions executed in 1~3 instruction cycles
- Table read instructions
- 115 powerful instructions
- 8-level subroutine nesting
- Bit manipulation instruction
Peripheral Features
- Flash Program Memory: 8K×16
- RAM Data Memory:...
