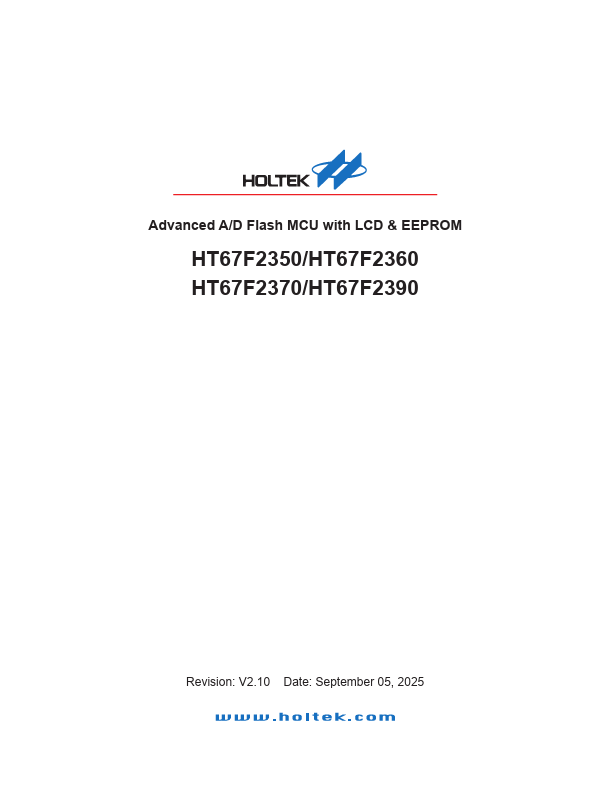

HT67F2350

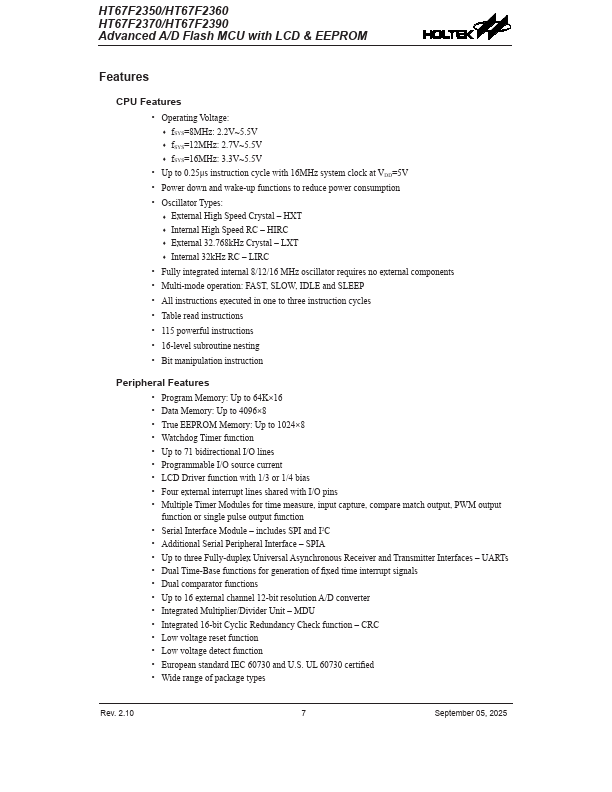

Features
CPU Features
- Operating Voltage:
- f SYS=8MHz: 2.2V~5.5V
- f SYS=12MHz: 2.7V~5.5V
- f SYS=16MHz: 3.3V~5.5V
- Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator Types:
- External High Speed Crystal
- HXT
- Internal High Speed RC
- HIRC
- External 32.768k Hz Crystal
- LXT
- Internal 32k Hz RC
- LIRC
- Fully integrated internal 8/12/16 MHz oscillator requires no external ponents
- Multi-mode operation: FAST, SLOW, IDLE and SLEEP
- All instructions executed in one to three instruction cycles
- Table read instructions
- 115 powerful instructions
- 16-level subroutine nesting
- Bit manipulation instruction
Peripheral Features
- Program Memory: Up to 64K×16
- Data Memory: Up to 4096×8
- True EEPROM Memory: Up to 1024×8
- Watchdog Timer function
- Up to 71 bidirectional I/O lines
- Programmable I/O source current
- LCD Driver function with 1/3 or 1/4 bias
- Four external interrupt lines shared with...
