HT67F5660

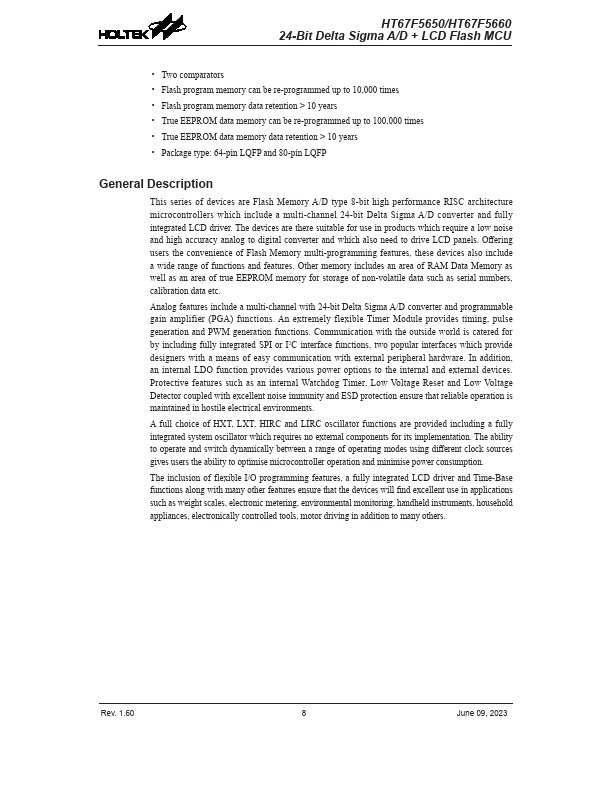

Description
This series of devices are Flash Memory A/D type 8-bit high performance RISC architecture microcontrollers which include a multi-channel 24-bit Delta Sigma A/D converter and fully integrated LCD driver. The devices are there suitable for use in products which require a low noise and high accuracy analog to digital converter and which also need to drive LCD panels.
Key Features
- Operating Voltage
- fSYS=8MHz: 2.2V~5.5V
- fSYS=12MHz: 2.7V~5.5V
- fSYS=16MHz: 3.3V~5.5V
- fSYS=20MHz: 4.5V~5.5V
- Up to 0.2μs instruction cycle with 20MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Four oscillators
- External Crystal - HXT
- External 32.768kHz Crystal - LXT
