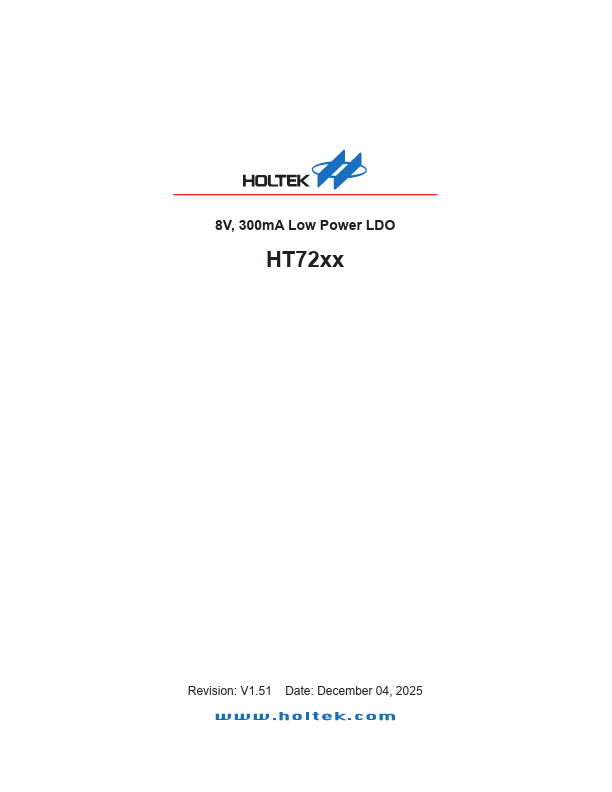

HT72XX Series 300mA TinyPowerTM LDO
Features
· Output voltage ranges: Fixed range of 1.8V, 2.5V, · Guaranteed output current: 300mA · Low quiescent current: 4mA (typ.) · Current limiting · Over-temperature shutdown · SOT23, SOT23-5, SOT89, TO92 Packages
2.7V, 3.0V, 3.3V, 5.0V type.
· Highly accuracy: ±2% · Low voltage drop: 240mV (typ.),
VOUT=5.0V at 300mA
· Maximum Input Voltage: 8V
Applications
· Portable electronics · Wireless devices · Cordless phones · PC peripherals · Battery powered devices · Electronic scales
General Description
The HT72XX series of positive, linear regulators features low quiescent current (4mA typ.) with low dropout voltage, making them ideal for battery applications. The space-saving SOT23 package is attractive for ²Pocket² and ²Hand Held² applications.
