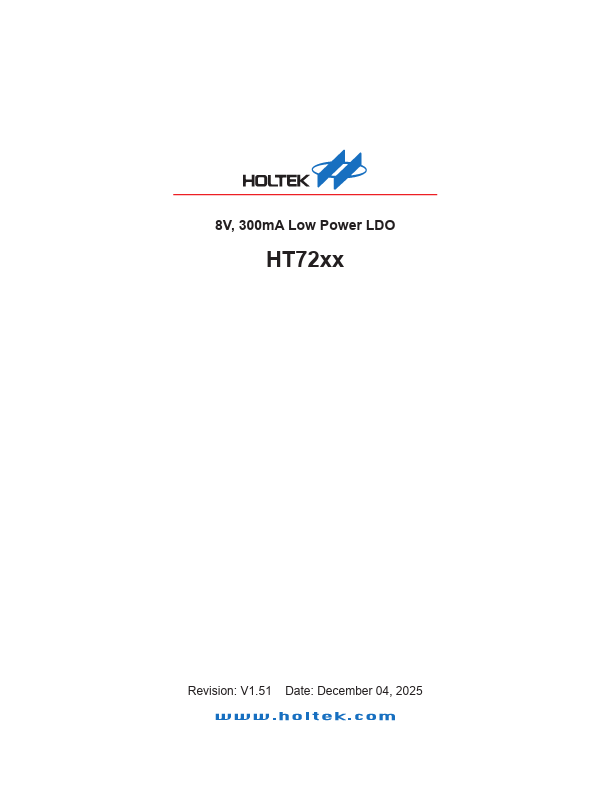

HT7250 Overview
The HT72XX series of positive, linear regulators.
HT7250 Key Features
- Output voltage ranges: Fixed range of 1.8V, 2.5V
- Guaranteed output current: 300mA
- Low quiescent current: 4mA (typ.)
- Current limiting
- Over-temperature shutdown
- SOT23, SOT23-5, SOT89, TO92 Packages
- Highly accuracy: ±2%
- Low voltage drop: 240mV (typ.)
- Maximum Input Voltage: 8V
