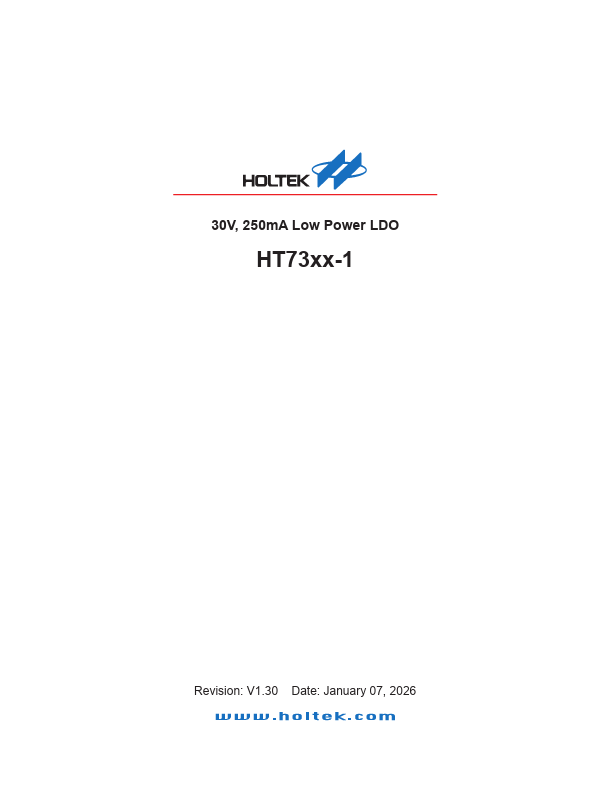

HT7323-1 Datasheet | Holtek Semiconductor

Features - Low power consumption - Low voltage drop - Low temperature coefficient - High input voltage - up to 30V - Output voltage accuracy: tolerance ±3% - Over current protection - Package type: 3-pin SOT89 Applications - Battery-powered equipment - munication equipment - Audio/Video equipment General Description The HT73xx-1 device series are low power high voltage regulators implemented in CMOS technology which have the advantages of low voltage drop and low quiescent current. They allow input voltages as high as 30V. They are available with several fixed output voltages ranging from 2.1V to 5.0V. The soft-start function inhibits the problem of output overshoot during power on. Although designed primarily as fixed voltage regulators, these devices can be used with external ponents to obtain variable voltages and currents. Selection Table Part No. Output Voltage HT7321-1 2.1V 2.3V HT7325-1 2.5V HT7327-1 2.7V HT7330-1 3.0V HT7333-1 3.3V HT7336-1 3.6V HT7340-1 4.0V HT7344-1 4.4V HT7350-1 5.0V Note: ″xx″ stands for output voltages. Package...
