HT7818 - 500mA TinyPower LDO

This page provides the datasheet information for the HT7818, a member of the HT78xx 500mA TinyPower LDO family.

Product Overview

Holtek Semiconductor

📥 Download Datasheet

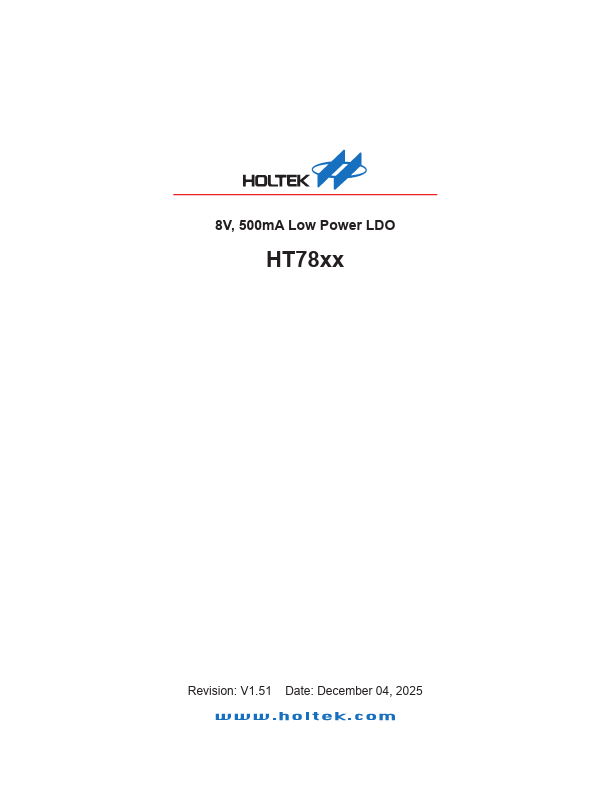

HT7818 500mA TinyPower LDO by Holtek Semiconductor - Datasheet Preview — Datasheet preview – HT7818

Datasheet Details

Part number	HT7818
Manufacturer	Holtek Semiconductor
File Size	309.48 KB
Description	500mA TinyPower LDO
Datasheet	HT7818 Datasheet

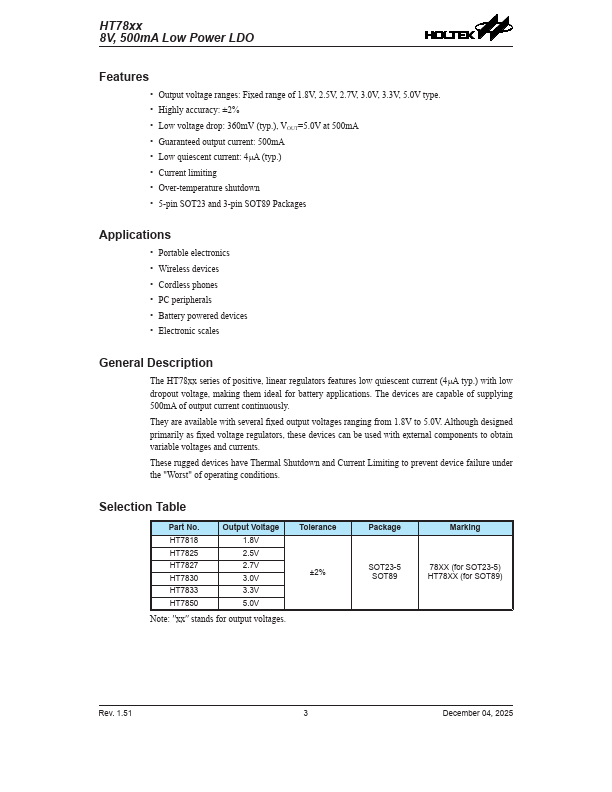

Additional preview pages of the HT7818 datasheet.

HT7818 Product details

Description

The HT78xx series of positive, linear regulators

Features

Output voltage ranges: Fixed range of 1.8V, 2.5V, 2.7V, 3.0V, 3.3V, 5.0V type.
Highly accuracy: ±2%.
Low voltage drop: 360mV (typ. ), VOUT=5.0V at 500mA.
Guaranteed output current: 500mA.
Low quiescent current: 4mA (typ. ).
Current limiting.
Over-temperature shutdown.
5-pin SOT23 and 3-pin SOT89 Packages.
