HT7825 Datasheet | Holtek Semiconductor

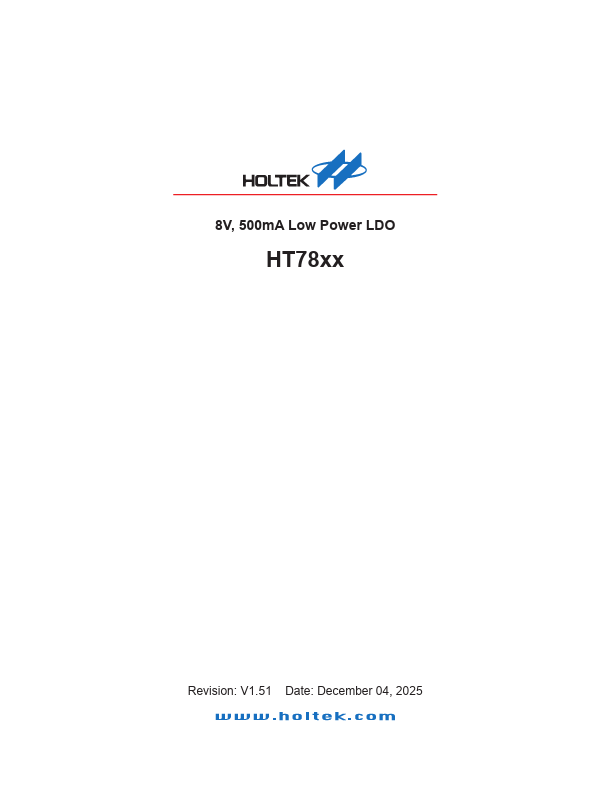

8V, 500mA Low Power LDO HT78xx Revision: V1.51 Date: December 04, 2025 HT78xx 8V, 500mA Low Power LDO Features - Output voltage ranges: Fixed range of 1.8V, 2.5V, 2.7V, 3.0V, 3.3V, 5.0V type. - Highly accuracy: ±2% - Low voltage drop: 360mV (typ.), VOUT=5.0V at 500mA - Guaranteed output current: 500mA - Low quiescent current: 4mA (typ.) - Current limiting - Over-temperature shutdown - 5-pin SOT23 and 3-pin SOT89 Packages Applications - Portable electronics - Wireless devices - Cordless phones - PC peripherals - Battery powered devices - Electronic scales General Description The HT78xx series of positive, linear regulators Features low quiescent current (4mA typ.) with low dropout...
