HT7939A - High Current and Performance White LED Driver

General Description

The HT7939A is a high efficiency boost converter for driving multiple White LEDs using current mode operation.

The device is designed to drive up to 39 White LEDs from a 5V power supply.

The White LED current is setup using an external current setting resistor, which has a low feedback voltage of 0.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
HT7005L LCD HYES Optoelectronics
HT7017 High-precision single-phase metering chip HiTrendtech
HT7020 three-port low voltage detector UMW
HT7022 three-port low voltage detector UMW
HT7024 three-port low voltage detector UMW

Other Datasheets by Holtek Semiconductor

Part Number Description
HT7939 High Current and Performance White LED Driver
HT7936A White LED Step-up Charge Pump Converter
HT7936B White LED Step-up Charge Pump Converter
HT7937 Built-in OVP White LED Step-up Converter
HT7938 High Current And Performance White LED Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

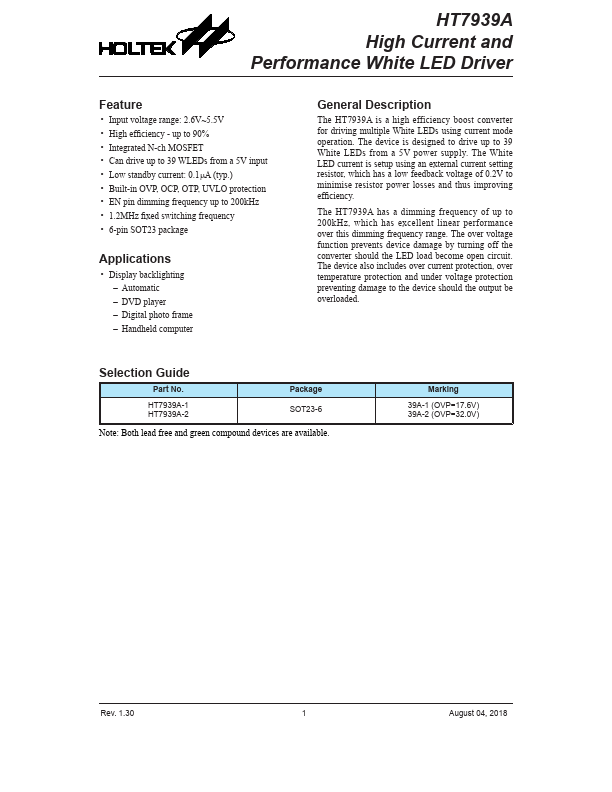

HT7939A High Current and Performance White LED Driver Feature • Input voltage range: 2.6V~5.5V • High efficiency - up to 90% • Integrated N-ch MOSFET • Can drive up to 39 WLEDs from a 5V input • Low standby current: 0.1mA (typ.) • Built-in OVP, OCP, OTP, UVLO protection • EN pin dimming frequency up to 200kHz • 1.2MHz fixed switching frequency • SOT23-6 package Applications • Display backlighting –– Automatic –– DVD player –– Digital photo frame –– Handheld computer General Description The HT7939A is a high efficiency boost converter for driving multiple White LEDs using current mode operation. The device is designed to drive up to 39 White LEDs from a 5V power supply. The White LED current is setup using an external current setting resistor, which has a low feedback voltage of 0.
