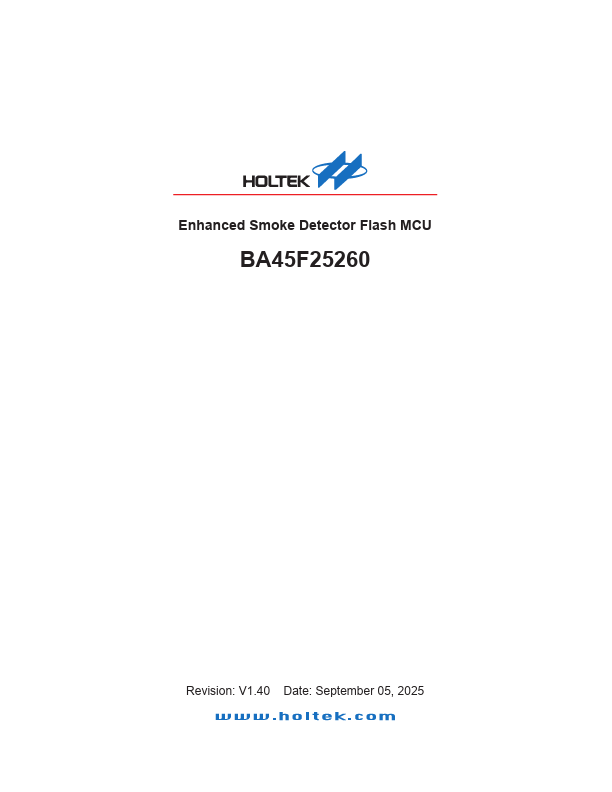

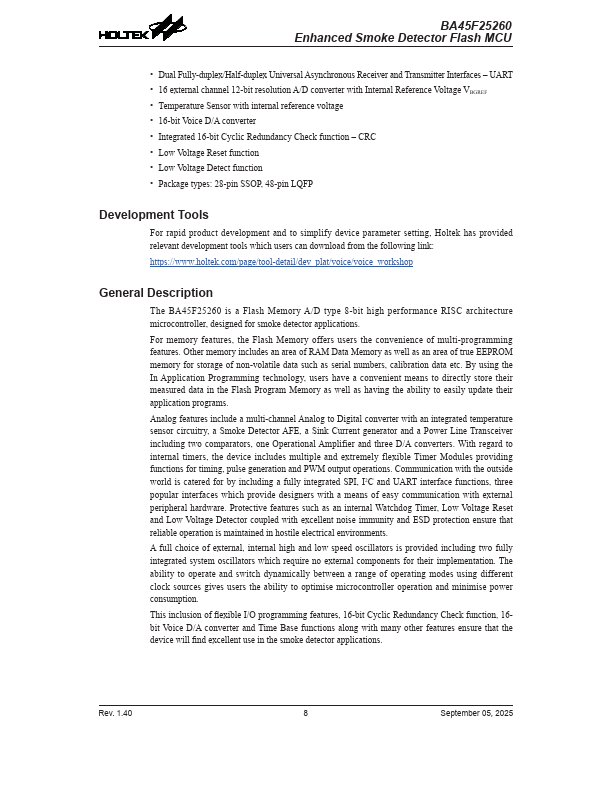

BA45F25260 Description
The BA45F25260 is a Flash Memory A/D type 8-bit high performance RISC architecture microcontroller, designed for smoke detector applications.

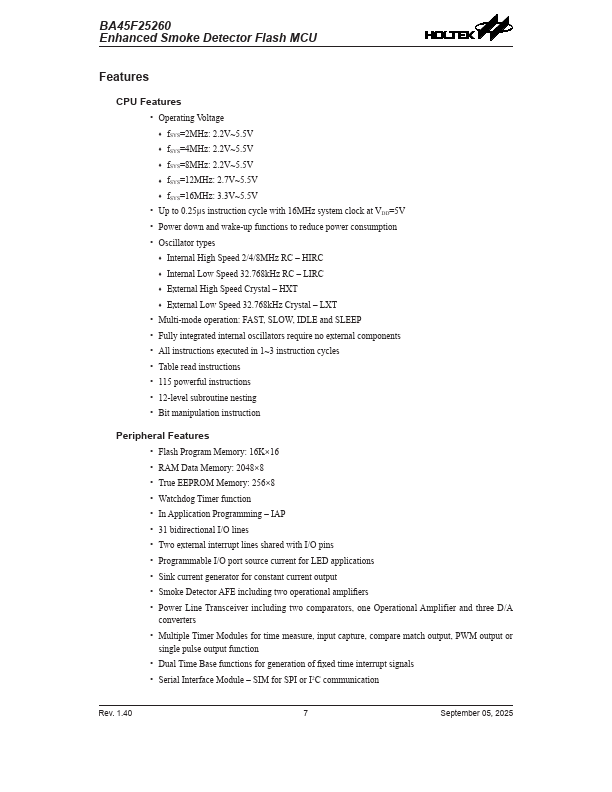

BA45F25260 Key Features
- Operating Voltage
- fSYS=2MHz: 2.2V~5.5V
- fSYS=4MHz: 2.2V~5.5V
- fSYS=8MHz: 2.2V~5.5V
- fSYS=12MHz: 2.7V~5.5V
- fSYS=16MHz: 3.3V~5.5V
- Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types
- Internal High Speed 2/4/8MHz RC
BA45F25260 Applications
- Sink current generator for constant current output
