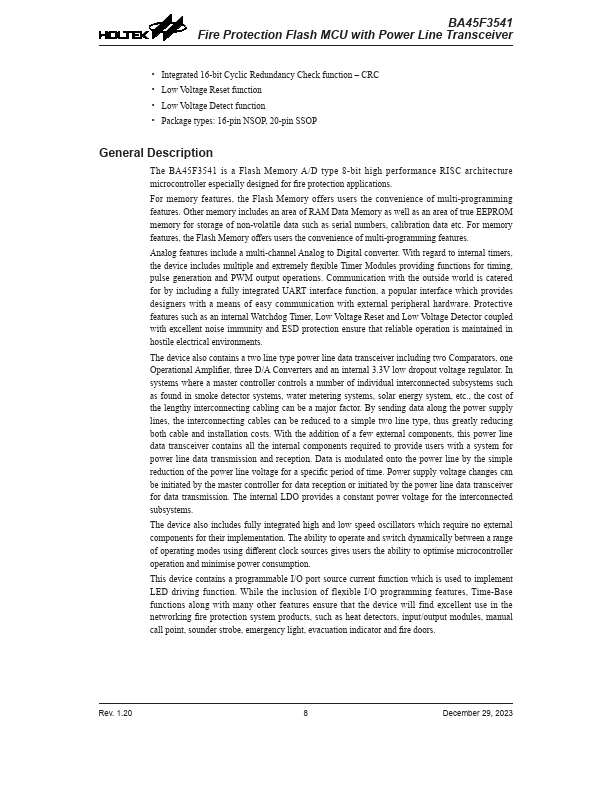

BA45F3541 Description
The BA45F3541 is a Flash Memory A/D type 8-bit high performance RISC architecture microcontroller especially designed for fire protection applications.

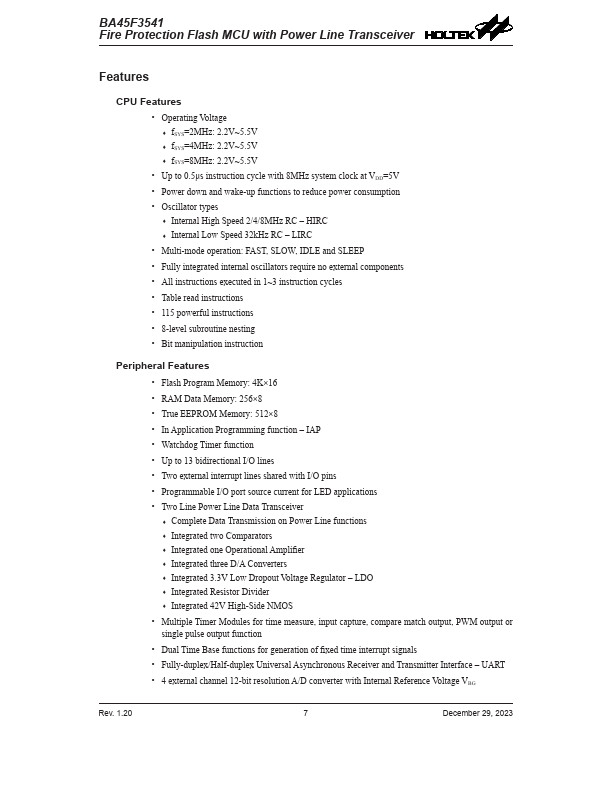

BA45F3541 Key Features
- Operating Voltage
- fSYS=2MHz: 2.2V~5.5V
- fSYS=4MHz: 2.2V~5.5V
- fSYS=8MHz: 2.2V~5.5V
- Up to 0.5μs instruction cycle with 8MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types
- Internal High Speed 2/4/8MHz RC
- Internal Low Speed 32kHz RC
- Multi-mode operation: FAST, SLOW, IDLE and SLEEP
