BA45F5420 Datasheet | Holtek Semiconductor

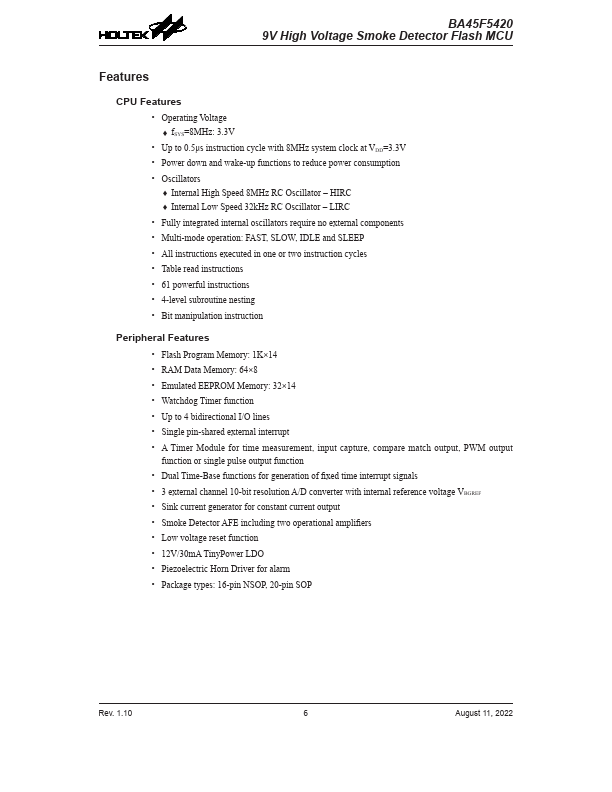

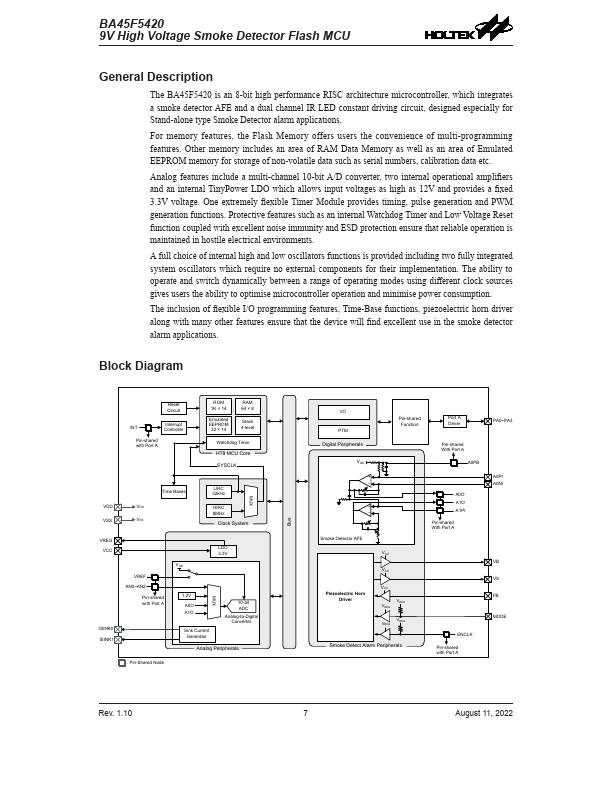

Features CPU Features - Operating Voltage - f SYS=8MHz: 3.3V - Up to 0.5μs instruction cycle with 8MHz system clock at VDD=3.3V - Power down and wake-up functions to reduce power consumption - Oscillators - Internal High Speed 8MHz RC Oscillator - HIRC - Internal Low Speed 32k Hz RC Oscillator - LIRC - Fully integrated internal oscillators require no external ponents - Multi-mode operation: FAST, SLOW, IDLE and SLEEP - All instructions executed in one or two instruction cycles - Table read instructions - 61 powerful instructions - 4-level subroutine nesting - Bit manipulation instruction Peripheral Features - Flash Program Memory: 1K×14 - RAM Data Memory: 64×8 - Emulated EEPROM Memory: 32×14 - Watchdog Timer function - Up to 4 bidirectional I/O lines - Single pin-shared external interrupt - A Timer Module for time measurement, input capture, pare match output, PWM output function or single pulse output function - Dual Time-Base functions for generation of fixed time interrupt signals - 3 external channel 10-bit resolution A/D converter with internal reference voltage VBGREF - Sink current generator for constant current output - Smoke Detector AFE including two operational amplifiers - Low voltage reset function - 12V/30m A Tiny Power LDO - Piezoelectric Horn Driver for alarm - Package types: 16-pin NSOP, 20-pin SOP Rev. 1.10 August 11, 2022 BA45F5420 9V High Voltage Smoke Detector Flash MCU General Description The BA45F5420 is an 8-bit high performance RISC architecture microcontroller, which integrates a smoke detector AFE and a dual channel IR LED constant driving circuit, designed especially for Stand-alone type Smoke Detector alarm applications. For memory...
