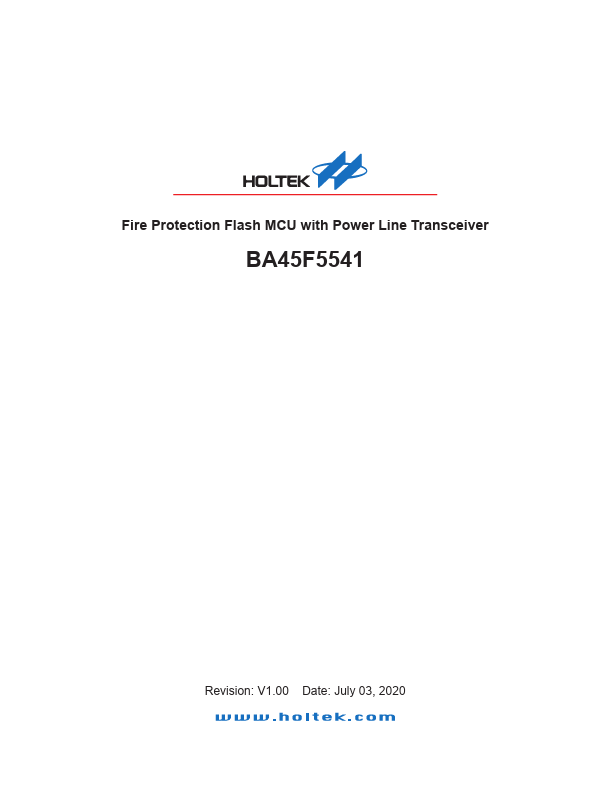

BA45F5541
BA45F5541 is Fire Protection Flash MCU manufactured by Holtek Semiconductor.

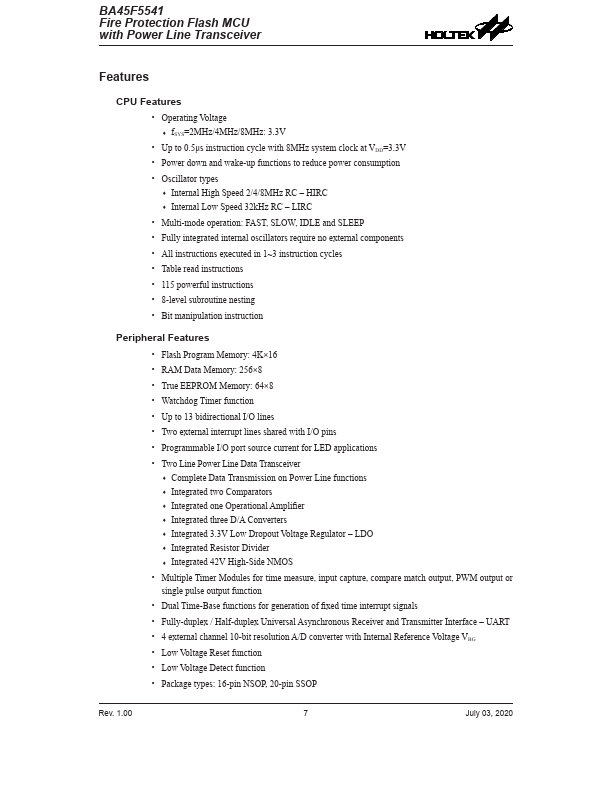

Features
CPU Features
- Operating Voltage
- f SYS=2MHz/4MHz/8MHz: 3.3V
- Up to 0.5μs instruction cycle with 8MHz system clock at VDD=3.3V
- Power down and wake-up functions to reduce power consumption
- Oscillator types
- Internal High Speed 2/4/8MHz RC
- HIRC
- Internal Low Speed 32k Hz RC
- LIRC
- Multi-mode operation: FAST, SLOW, IDLE and SLEEP
- Fully integrated internal oscillators require no external ponents
- All instructions executed in 1~3 instruction cycles
- Table read instructions
- 115 powerful instructions
- 8-level subroutine nesting
- Bit manipulation instruction
Peripheral Features
- Flash Program Memory: 4K×16
- RAM Data Memory: 256×8
- True EEPROM Memory: 64×8
- Watchdog Timer function
- Up to 13 bidirectional I/O lines
- Two external interrupt lines shared with I/O pins
- Programmable I/O port source current for LED applications
- Two Line Power Line Data Transceiver
- plete Data Transmission on Power Line functions
- Integrated two parators
- Integrated one Operational Amplifier
- Integrated three D/A Converters
- Integrated 3.3V Low Dropout Voltage Regulator
- LDO
- Integrated Resistor Divider
- Integrated 42V High-Side NMOS
- Multiple Timer Modules for time measure, input capture, pare match output, PWM output or single pulse output function
- Dual Time-Base functions for generation of fixed time interrupt signals
- Fully-duplex / Half-duplex Universal Asynchronous Receiver and Transmitter Interface
- UART
- 4 external channel 10-bit resolution A/D converter with Internal Reference Voltage...
