BA45F6622 Datasheet | Holtek Semiconductor

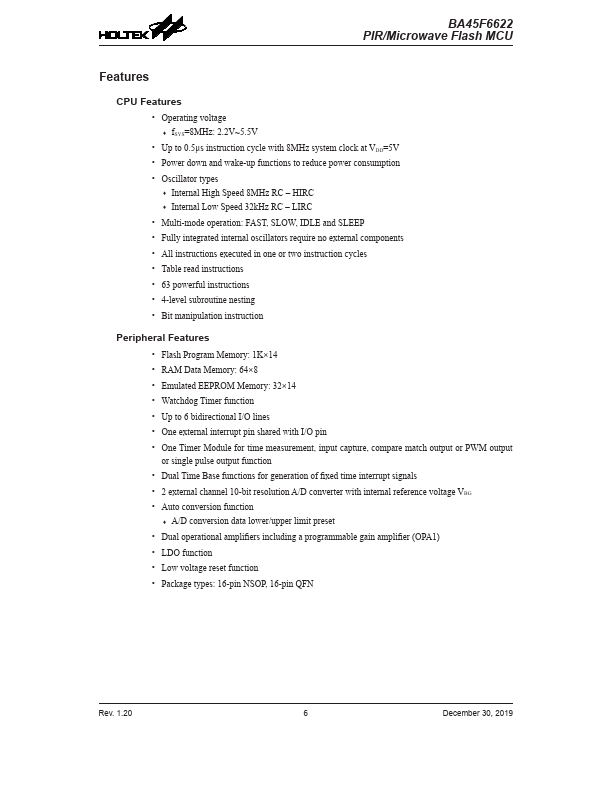

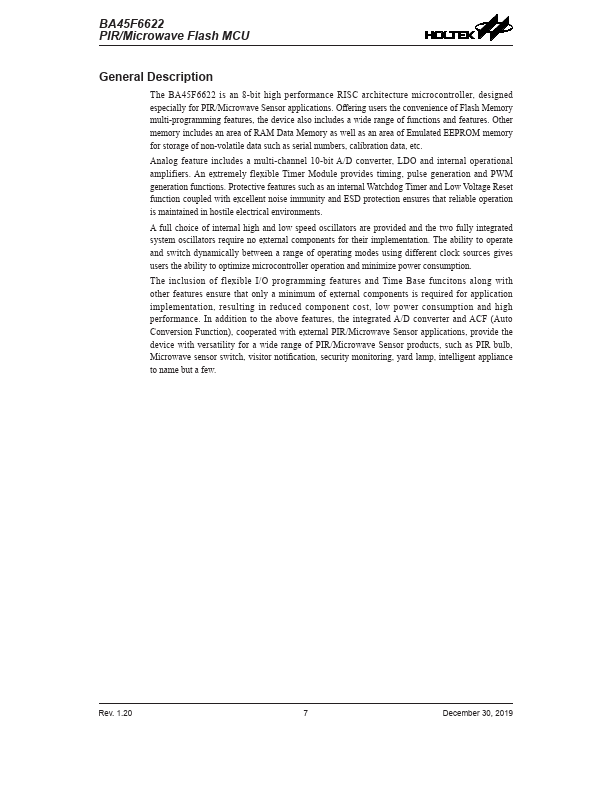

Features CPU Features - Operating voltage - f SYS=8MHz: 2.2V~5.5V - Up to 0.5μs instruction cycle with 8MHz system clock at VDD=5V - Power down and wake-up functions to reduce power consumption - Oscillator types - Internal High Speed 8MHz RC - HIRC - Internal Low Speed 32k Hz RC - LIRC - Multi-mode operation: FAST, SLOW, IDLE and SLEEP - Fully integrated internal oscillators require no external ponents - All instructions executed in one or two instruction cycles - Table read instructions - 63 powerful instructions - 4-level subroutine nesting - Bit manipulation instruction Peripheral Features - Flash Program Memory: 1K×14 - RAM Data Memory: 64×8 - Emulated EEPROM Memory: 32×14 - Watchdog Timer function - Up to 6 bidirectional I/O lines - One external interrupt pin shared with I/O pin - One Timer Module for time measurement, input capture, pare match output or PWM output or single pulse output function - Dual Time Base functions for generation of fixed time interrupt signals - 2 external channel 10-bit resolution A/D converter with internal reference voltage VBG - Auto conversion function - A/D conversion data lower/upper limit preset - Dual operational amplifiers including a programmable gain amplifier (OPA1) - LDO function - Low voltage reset function - Package types: 16-pin NSOP, 16-pin QFN Rev. 1.20 December 30, 2019 BA45F6622 PIR/Microwave Flash MCU General Description The BA45F6622 is an 8-bit high performance RISC architecture microcontroller, designed especially for PIR/Microwave Sensor applications. Offering users the convenience of Flash Memory multi-programming...
