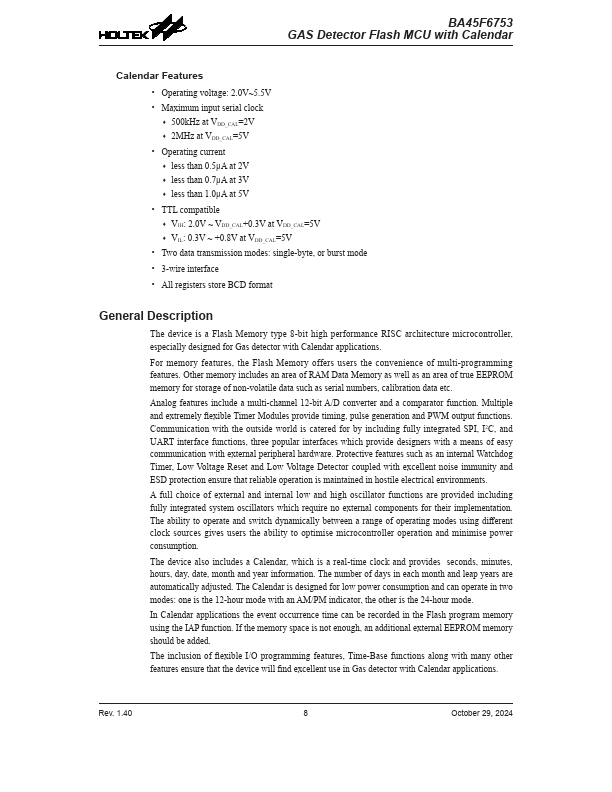

BA45F6753 Description
The device is a Flash Memory type 8-bit high performance RISC architecture microcontroller, especially designed for Gas detector with Calendar applications.

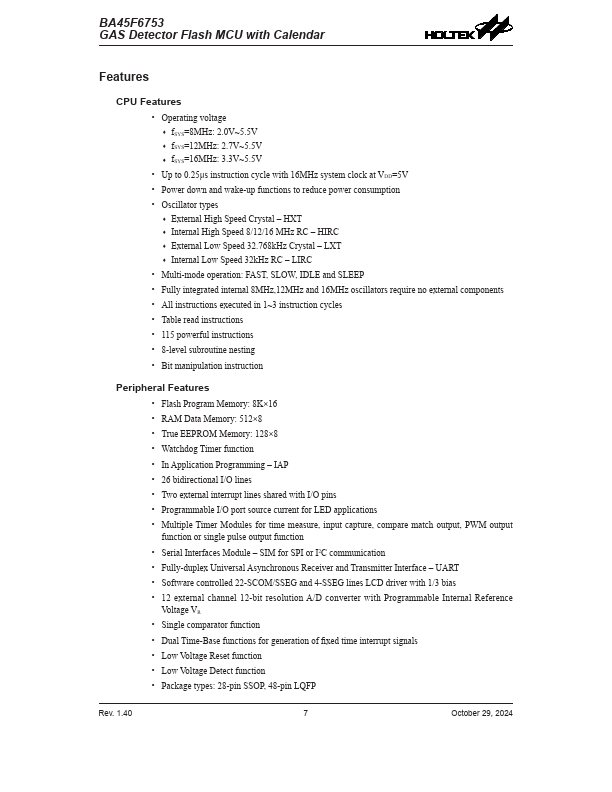

BA45F6753 Key Features
- Operating voltage
- fSYS=8MHz: 2.0V~5.5V
- fSYS=12MHz: 2.7V~5.5V
- fSYS=16MHz: 3.3V~5.5V
- Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types
- External High Speed Crystal
- Internal High Speed 8/12/16 MHz RC
- External Low Speed 32.768kHz Crystal
BA45F6753 Applications
- Multiple Timer Modules for time measure, input capture, pare match output, PWM output function or single pulse output function
