BC2502D

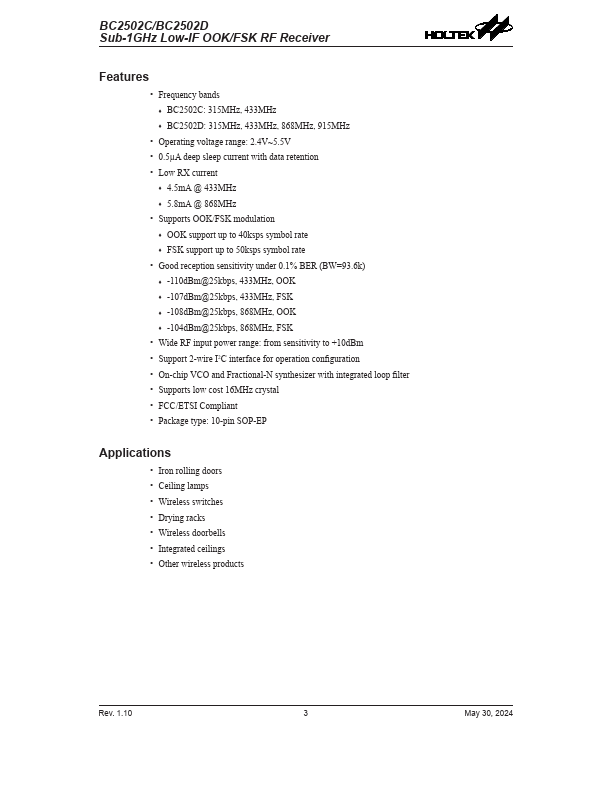

Features
- Frequency bands
- BC2502C: 315MHz, 433MHz
- BC2502D: 315MHz, 433MHz, 868MHz, 915MHz
- Operating voltage range: 2.4V~5.5V
- 0.5µA deep sleep current with data retention
- Low RX current
- 4.5m A @ 433MHz
- 5.8m A @ 868MHz
- Supports OOK/FSK modulation
- OOK support up to 40ksps symbol rate
- FSK support up to 50ksps symbol rate
- Good reception sensitivity under 0.1% BER (BW=93.6k)
- -110d Bm@25kbps, 433MHz, OOK
- -107d Bm@25kbps, 433MHz, FSK
- -108d Bm@25kbps, 868MHz, OOK
- -104d Bm@25kbps, 868MHz, FSK
- Wide RF input power range: from sensitivity to +10d Bm
- Support 2-wire I2C interface for operation configuration
- On-chip VCO and Fractional-N synthesizer with integrated loop filter
- Supports low cost 16MHz crystal
- FCC/ETSI pliant
- Package type: 10-pin SOP-EP
Applications
- Iron rolling doors
- Ceiling lamps
- Wireless switches
- Drying racks
- Wireless doorbells
- Integrated ceilings
- Other wireless products
Rev. 1.10
May 30, 2024
BC2502C/BC2502D Sub-1GHz Low-IF...
