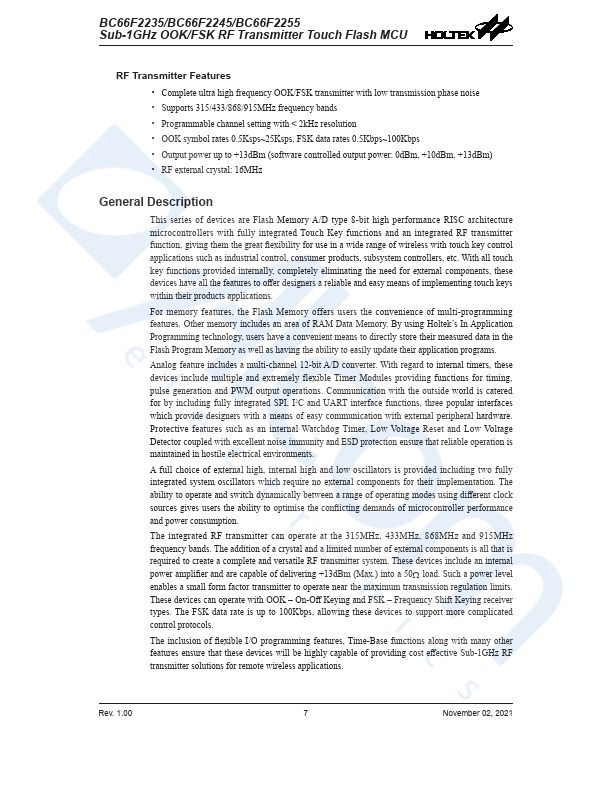

BC66F2255 Description
This series of devices are Flash Memory A/D type 8-bit high performance RISC architecture microcontrollers with fully integrated Touch Key functions and an integrated RF transmitter function, giving them the great flexibility for use in a wide range of wireless with touch key control applications such as industrial control, consumer products, subsystem controllers, etc. With all touch key functions provided...

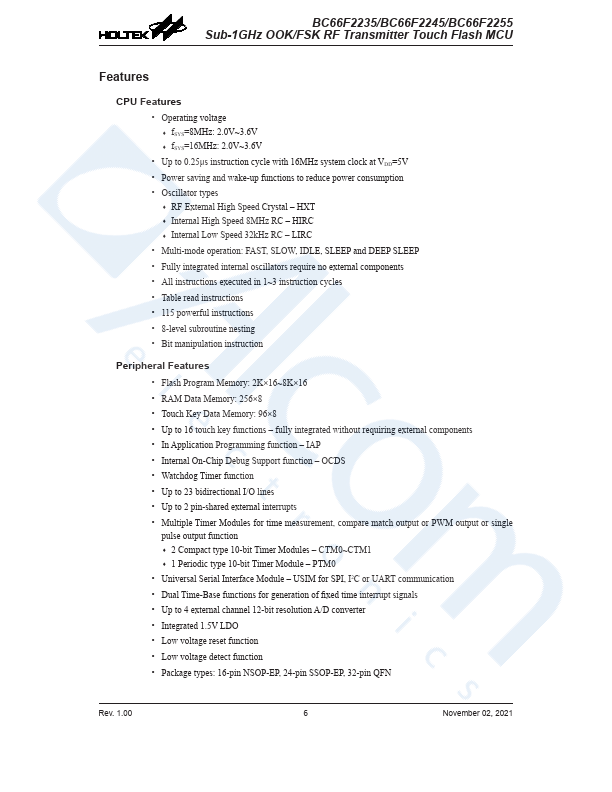

BC66F2255 Key Features
- Operating voltage
- fSYS=8MHz: 2.0V~3.6V
- fSYS=16MHz: 2.0V~3.6V
- Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
- Power saving and wake-up functions to reduce power consumption
- Oscillator types
- RF External High Speed Crystal
- Internal High Speed 8MHz RC
- Internal Low Speed 32kHz RC
- Multi-mode operation: FAST, SLOW, IDLE, SLEEP and DEEP SLEEP
