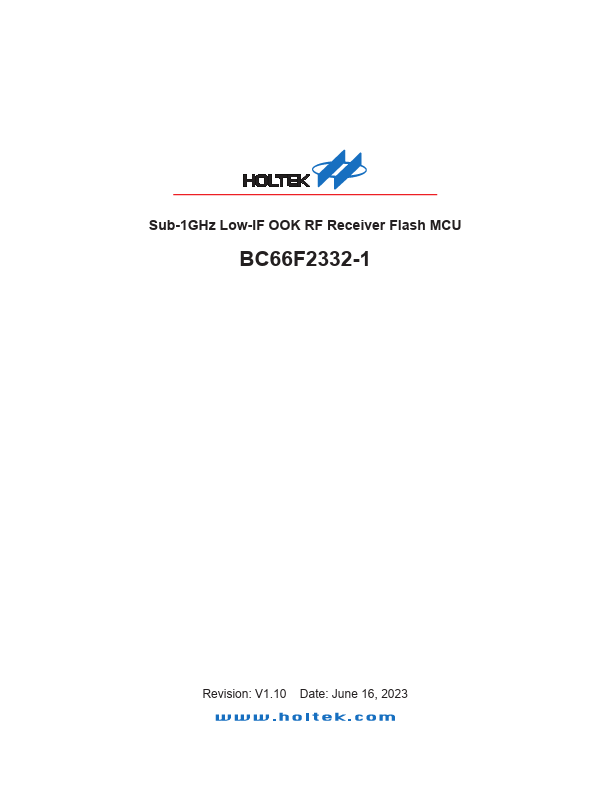

BC66F2332-1

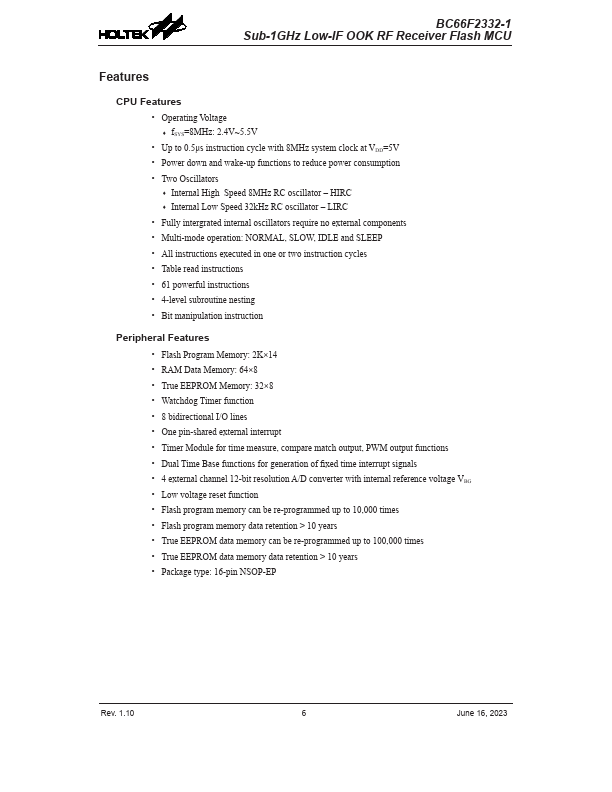

Features
CPU Features
- Operating Voltage
- f SYS=8MHz: 2.4V~5.5V
- Up to 0.5μs instruction cycle with 8MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Two Oscillators
- Internal High Speed 8MHz RC oscillator
- HIRC
- Internal Low Speed 32k Hz RC oscillator
- LIRC
- Fully intergrated internal oscillators require no external ponents
- Multi-mode operation: NORMAL, SLOW, IDLE and SLEEP
- All instructions executed in one or two instruction cycles
- Table read instructions
- 61 powerful instructions
- 4-level subroutine nesting
- Bit manipulation instruction
Peripheral Features
- Flash Program Memory: 2K×14
- RAM Data Memory: 64×8
- True EEPROM Memory: 32×8
- Watchdog Timer function
- 8 bidirectional I/O lines
- One pin-shared external interrupt
- Timer Module for time measure, pare match output, PWM output functions
- Dual Time Base functions for generation of fixed time interrupt signals
- 4 external channel 12-bit resolution A/D converter with...
