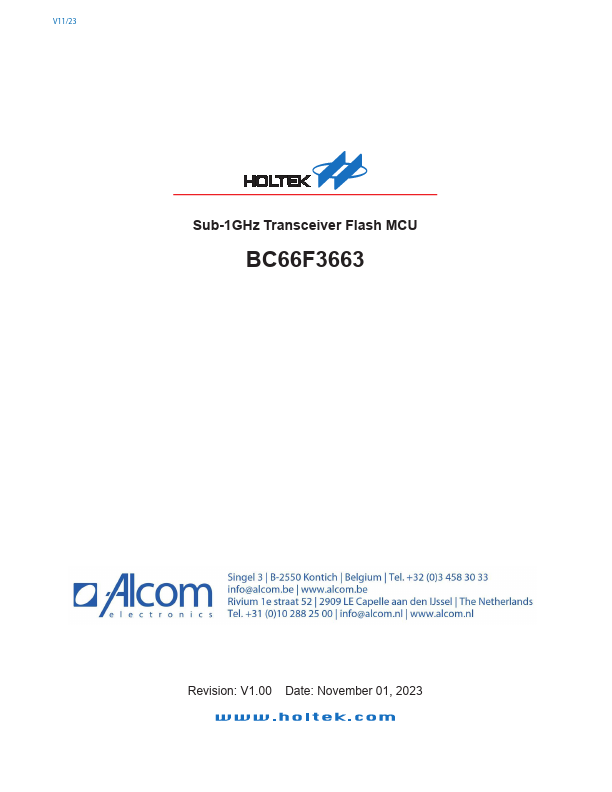

BC66F3663
BC66F3663 is Sub-1GHz Transceiver Flash MCU manufactured by Holtek Semiconductor.
V11/23
Sub-1GHz Transceiver Flash MCU
Revision: V1.00 Date: November 01, 2023
BC66F3663 Sub-1GHz Transceiver Flash MCU

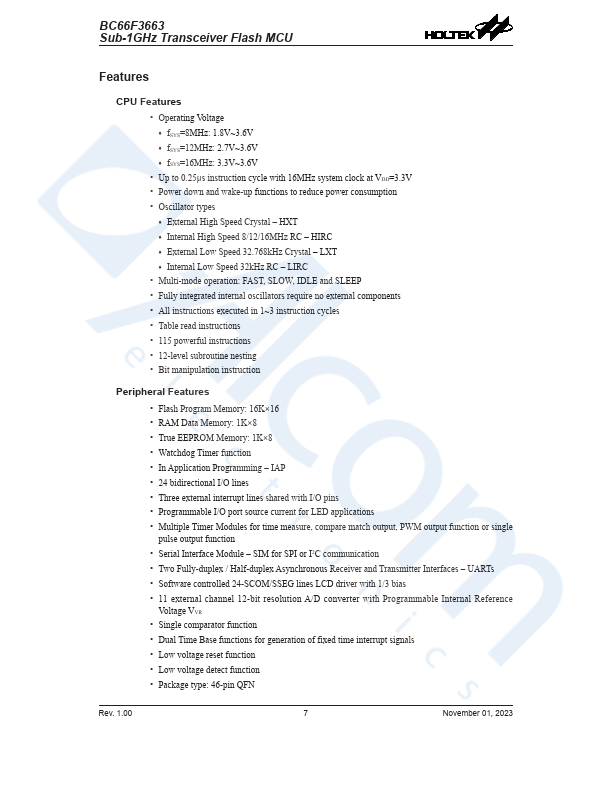

Features
CPU Features
- Operating Voltage
- f SYS=8MHz: 1.8V~3.6V
- f SYS=12MHz: 2.7V~3.6V
- f SYS=16MHz: 3.3V~3.6V
- Up to 0.25μs instruction cycle with 16MHz system clock at VDD=3.3V
- Power down and wake-up functions to reduce power consumption
- Oscillator types
- External High Speed Crystal
- HXT
- Internal High Speed 8/12/16MHz RC
- HIRC
- External Low Speed 32.768k Hz Crystal
- LXT
- Internal Low Speed 32k Hz RC
- LIRC
- Multi-mode operation: FAST, SLOW, IDLE and SLEEP
- Fully integrated internal oscillators require no external ponents
- All instructions executed in 1~3 instruction cycles
- Table read instructions
- 115 powerful instructions
- 12-level subroutine nesting
- Bit manipulation instruction
Peripheral Features
- Flash Program Memory:...
