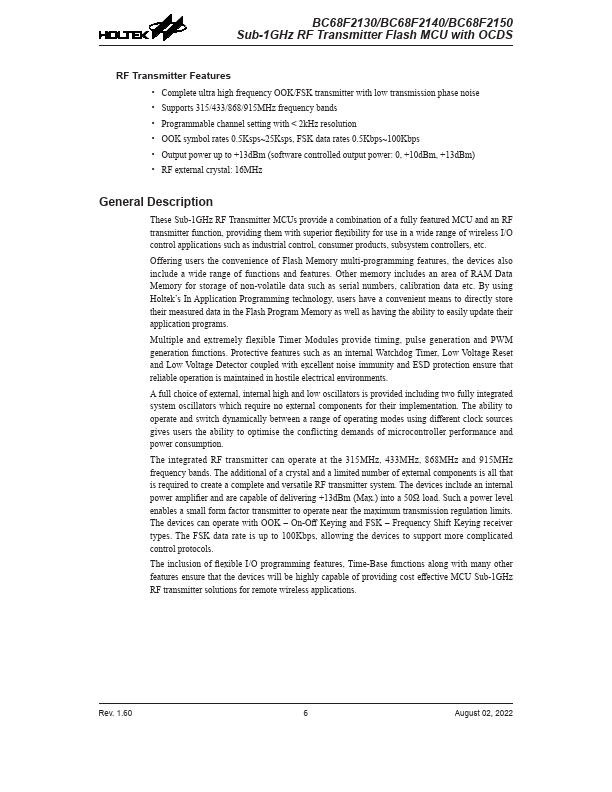

BC68F2150 Description
These Sub-1GHz RF Transmitter MCUs provide a bination of a fully featured MCU and an RF transmitter function, providing them with superior flexibility for use in a wide range of wireless I/O control applications such as industrial control, consumer products, subsystem controllers, etc. Offering users the convenience of Flash Memory multi-programming.

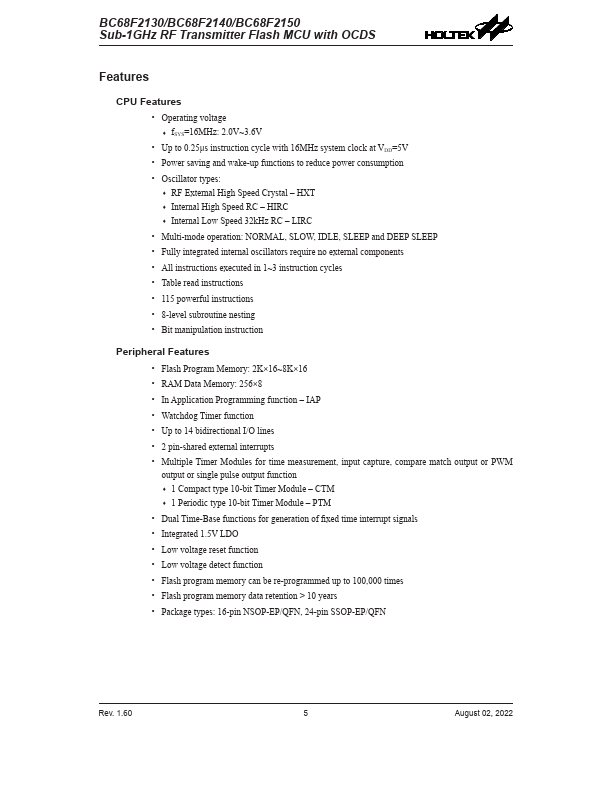

BC68F2150 Key Features
- Operating voltage
- fSYS=16MHz: 2.0V~3.6V
- Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
- Power saving and wake-up functions to reduce power consumption
- Oscillator types
- RF External High Speed Crystal
- Internal High Speed RC
- Internal Low Speed 32kHz RC
- Multi-mode operation: NORMAL, SLOW, IDLE, SLEEP and DEEP SLEEP
- Fully integrated internal oscillators require no external ponents
