Holtek Semiconductor BC7262
The BC7262 is aimed for the Beacon device for various proximity aware applications. The BC7262 is a low-cost 2.4GHz BLE Beacon transceiver. With an external 32MHz crystal (XO), an MCU and a few ceramic capacitors, it can implement a complete Beacon device.| Part No. | BC7262 |
|---|---|
| Datasheet | BC7262 Download |
| Manufacturer |  Holtek Semiconductor |
| Description | 2.4GHz BLE Beacon Transceiver |
| Buy | Stock & Price |

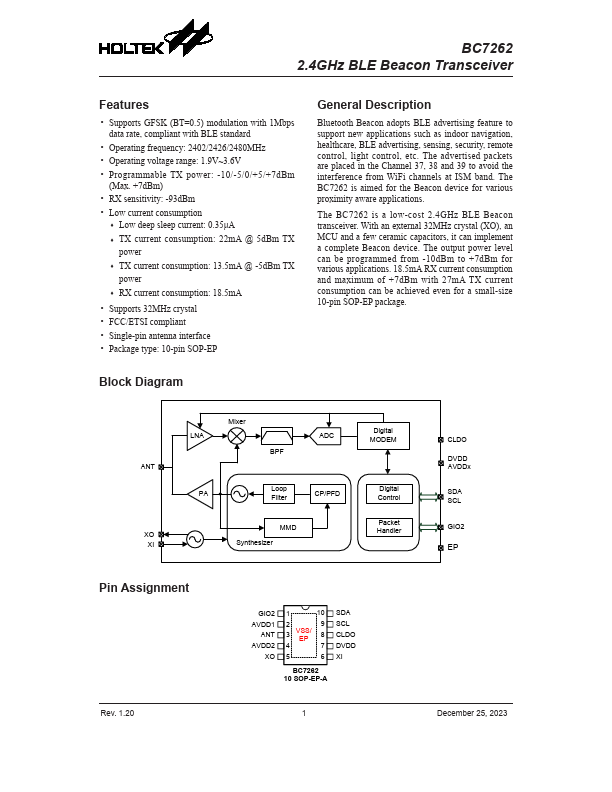

FEATURES
● Supports GFSK (BT=0.5) modulation with 1Mbps data rate, compliant with BLE standard● Operating frequency: 2402/2426/2480MHz
● Operating voltage range: 1.9V~3.6V
● Programmable TX power: -10/-5/0/+5/+7dBm (Max. +7dBm)
● RX sensitivity: -93dBm
● Low current consumption ♦ Low deep sleep current: 0.35μA ♦ TX current consumption: 22mA @ 5dBm TX power ♦ TX current consumption: 13.5mA @ -5dBm TX power ♦ RX current consumption: 18.5mA
● Supports 32MHz crystal
● FCC/ETSI compliant
● Single-pin antenna interface
● Package type: 10-pin SOP-EP
GENERAL DESCRIPTION
Bluetooth Beacon adopts BLE advertising feature to support new applications such as indoor navigation, healthcare, BLE advertising, sensing, security, remote control, light control, etc. The advertised packets are placed in the Channel 37, 38 and 39 to avoid the interference from WiFi channels at ISM band. The output power level can be programmed from -10dBm to +7dBm for various applications. 18.5mA RX current consumption and maximum of +7dBm with 27mA TX current consumption can be achieved even for a small-size 10-pin SOP-EP package.
