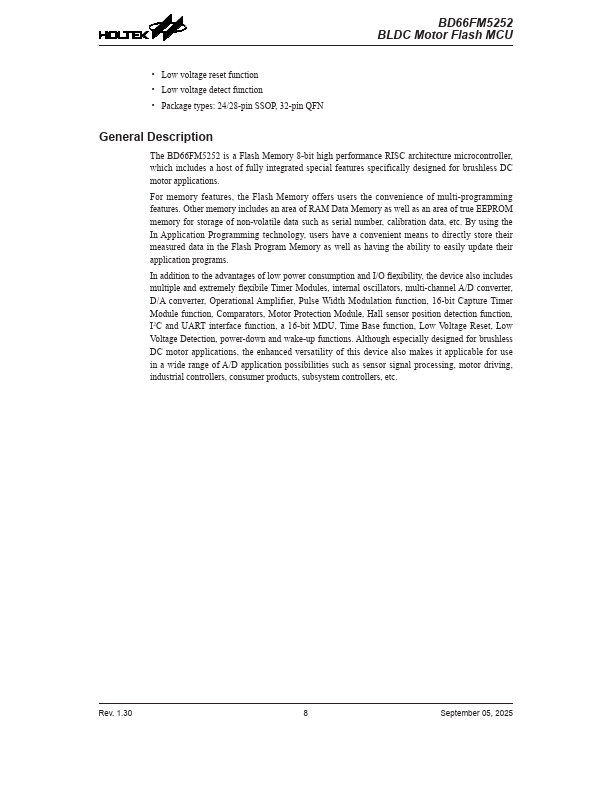

BD66FM5252 Description
The BD66FM5252 is a Flash Memory 8-bit high performance RISC architecture microcontroller, which includes a host of fully integrated special.

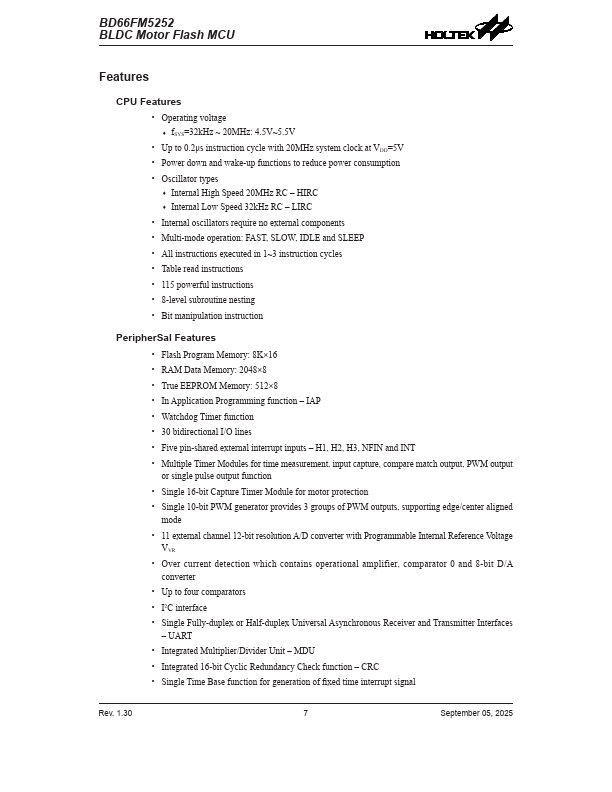

BD66FM5252 Key Features
- Operating voltage
- fSYS=32kHz ~ 20MHz: 4.5V~5.5V
- Up to 0.2μs instruction cycle with 20MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types
- Internal High Speed 20MHz RC
- Internal Low Speed 32kHz RC
- Internal oscillators require no external ponents
- Multi-mode operation: FAST, SLOW, IDLE and SLEEP
- All instructions executed in 1~3 instruction cycles
