BD66FM8446F
BD66FM8446F is BLDC Motor Flash MCU manufactured by Holtek Semiconductor.

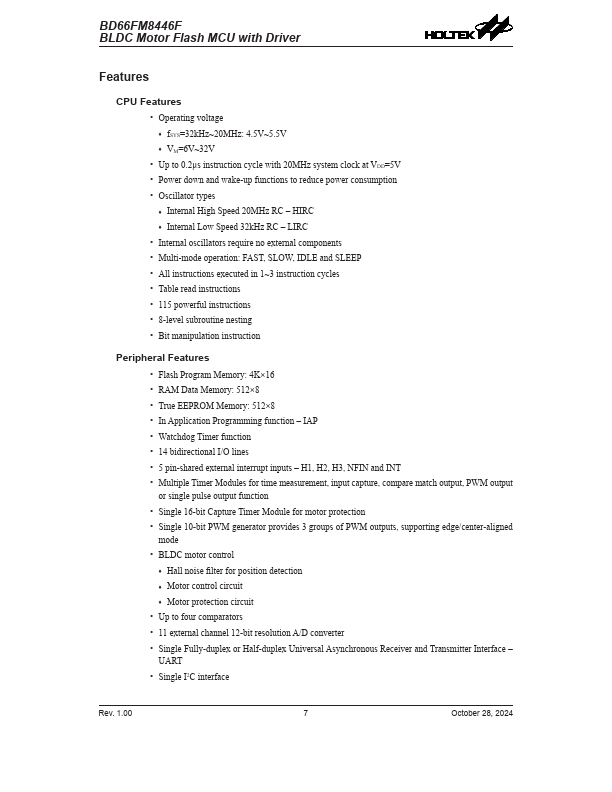

Features
CPU Features
- Operating voltage
- f SYS=32k Hz~20MHz: 4.5V~5.5V
- VM=6V~32V
- Up to 0.2μs instruction cycle with 20MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types
- Internal High Speed 20MHz RC
- HIRC
- Internal Low Speed 32k Hz RC
- LIRC
- Internal oscillators require no external ponents
- Multi-mode operation: FAST, SLOW, IDLE and SLEEP
- All instructions executed in 1~3 instruction cycles
- Table read instructions
- 115 powerful instructions
- 8-level subroutine nesting
- Bit manipulation instruction
Peripheral Features
- Flash Program Memory: 4K×16
- RAM Data Memory: 512×8
- True EEPROM Memory: 512×8
- In Application Programming function
- IAP
- Watchdog Timer function
- 14 bidirectional I/O lines
- 5 pin-shared external interrupt inputs
- H1, H2, H3, NFIN and INT
- Multiple Timer Modules for time measurement, input capture, pare match output, PWM output or single pulse output function
- Single 16-bit Capture Timer Module for motor protection
- Single 10-bit PWM generator provides 3 groups of PWM outputs, supporting edge/center-aligned mode
- BLDC motor control
- Hall noise filter for position detection
- Motor control circuit
- Motor protection circuit

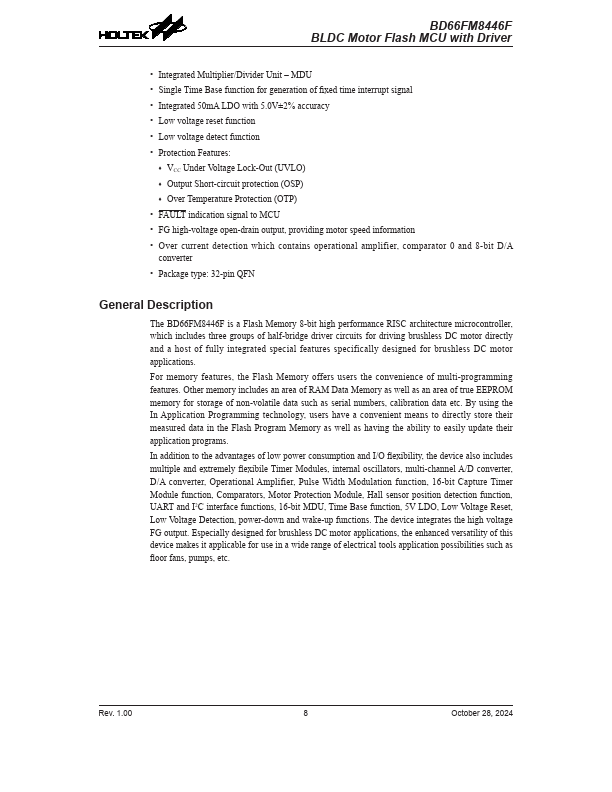

- Up to four parators
- 11 external channel 12-bit resolution A/D converter
- Single Fully-duplex or Half-duplex Universal Asynchronous Receiver and Transmitter Interface
-...
