BD66RM2541G
BD66RM2541G is 1-Phase BLDC Motor OTP MCU manufactured by Holtek Semiconductor.

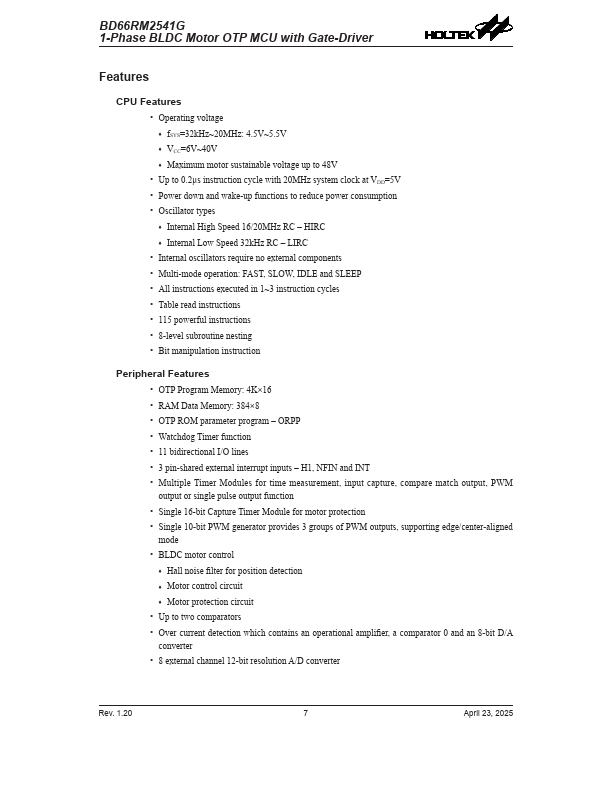

Features
CPU Features
- Operating voltage
- f SYS=32k Hz~20MHz: 4.5V~5.5V
- VCC=6V~40V
- Maximum motor sustainable voltage up to 48V
- Up to 0.2μs instruction cycle with 20MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types
- Internal High Speed 16/20MHz RC
- HIRC
- Internal Low Speed 32k Hz RC
- LIRC
- Internal oscillators require no external ponents
- Multi-mode operation: FAST, SLOW, IDLE and SLEEP
- All instructions executed in 1~3 instruction cycles
- Table read instructions
- 115 powerful instructions
- 8-level subroutine nesting
- Bit manipulation instruction
Peripheral Features
- OTP Program Memory: 4K×16
- RAM Data Memory: 384×8
- OTP ROM parameter program
- ORPP
- Watchdog Timer function
- 11 bidirectional I/O lines
- 3 pin-shared external interrupt inputs
- H1, NFIN and INT
- Multiple Timer Modules for time measurement, input capture, pare match output, PWM output or single pulse output function
- Single 16-bit Capture Timer Module for motor protection
- Single 10-bit PWM generator provides 3 groups of PWM outputs, supporting edge/center-aligned mode
- BLDC motor control
- Hall noise filter for position detection
- Motor control circuit
- Motor protection circuit
- Up to two parators
- Over current detection which contains an operational amplifier, a parator 0 and an 8-bit D/A converter
- 8 external channel 12-bit resolution A/D converter
