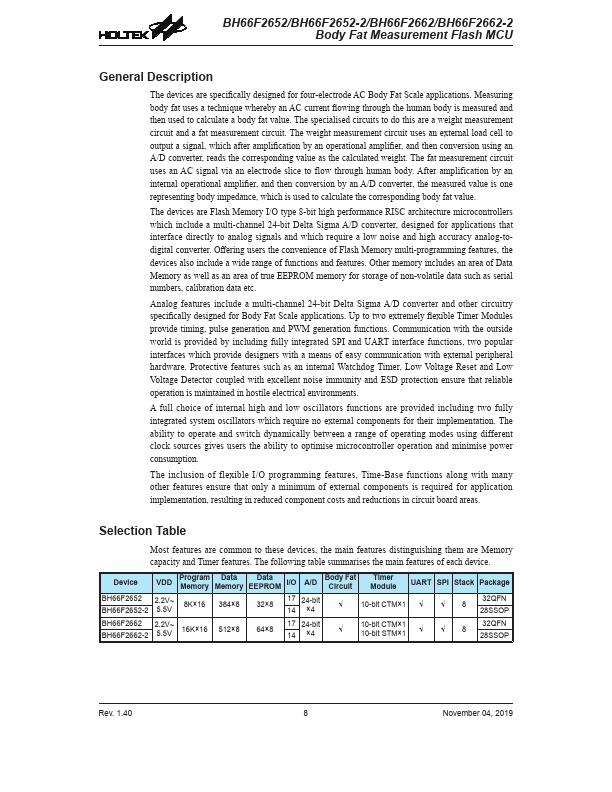

BH66F2652-2 Description
The devices are specifically designed for four-electrode AC Body Fat Scale applications. Measuring body fat uses a technique whereby an AC current flowing through the human body is measured and then used to calculate a body fat value. The specialised circuits to do this are a weight measurement circuit and a fat measurement circuit.

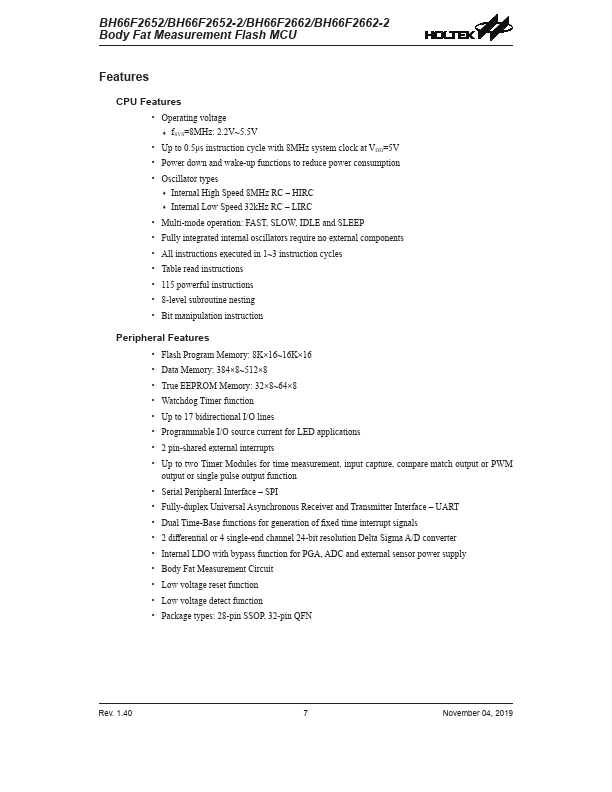

BH66F2652-2 Key Features
- Operating voltage -- fSYS=8MHz: 2.2V~5.5V
- Up to 0.5μs instruction cycle with 8MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types -- Internal High Speed 8MHz RC
- HIRC -- Internal Low Speed 32kHz RC
- Multi-mode operation: FAST, SLOW, IDLE and SLEEP
- Fully integrated internal oscillators require no external ponents
- All instructions executed in 1~3 instruction cycles
- Table read instructions
- 115 powerful instructions
