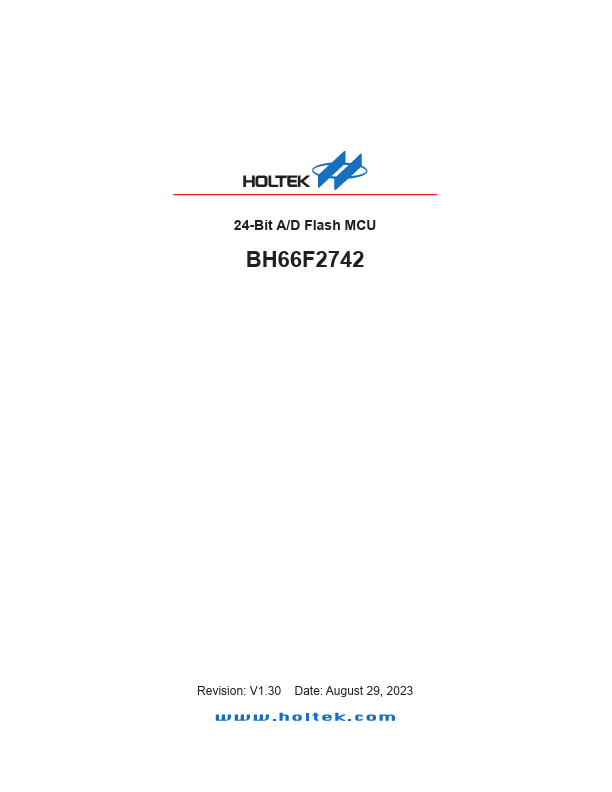

BH66F2742 Datasheet | Holtek Semiconductor

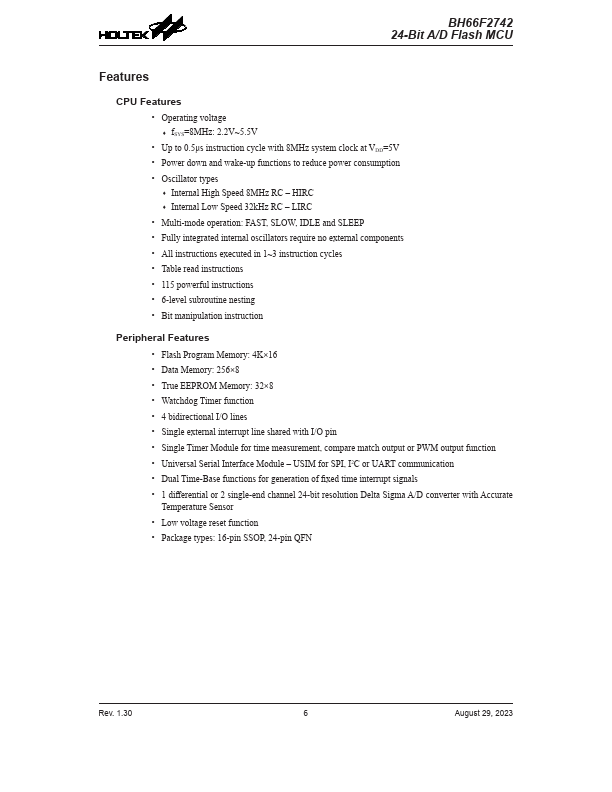

Features CPU Features - Operating voltage - f SYS=8MHz: 2.2V~5.5V - Up to 0.5μs instruction cycle with 8MHz system clock at VDD=5V - Power down and wake-up functions to reduce power consumption - Oscillator types - Internal High Speed 8MHz RC - HIRC - Internal Low Speed 32k Hz RC - LIRC - Multi-mode operation: FAST, SLOW, IDLE and SLEEP - Fully integrated internal oscillators require no external ponents - All instructions executed in 1~3 instruction cycles - Table read instructions - 115 powerful instructions - 6-level subroutine nesting - Bit manipulation instruction Peripheral Features - Flash Program Memory: 4K×16 - Data Memory: 256×8 - True EEPROM Memory: 32×8 - Watchdog Timer function - 4 bidirectional I/O lines - Single external interrupt line shared with I/O pin - Single Timer Module for time measurement, pare match output or PWM output function - Universal Serial Interface Module - USIM for SPI, I2C or UART munication - Dual Time-Base functions for generation of fixed time interrupt signals - 1 differential or 2 single-end channel 24-bit resolution Delta Sigma A/D converter with Accurate Temperature Sensor - Low voltage reset function - Package types: 16-pin SSOP, 24-pin QFN Rev. 1.30 August 29, 2023 BH66F2742 24-Bit A/D Flash MCU General Description The device is a Flash Memory A/D type 8-bit high performance RISC architecture microcontroller which includes a multi-channel 24-bit Delta Sigma A/D converter with Accurate Temperature Sensor. For memory features , the Flash Memory offers users the convenience of multi-programming...
