BH66F5350 is 24-Bit A/D Flash MCU manufactured by Holtek Semiconductor.

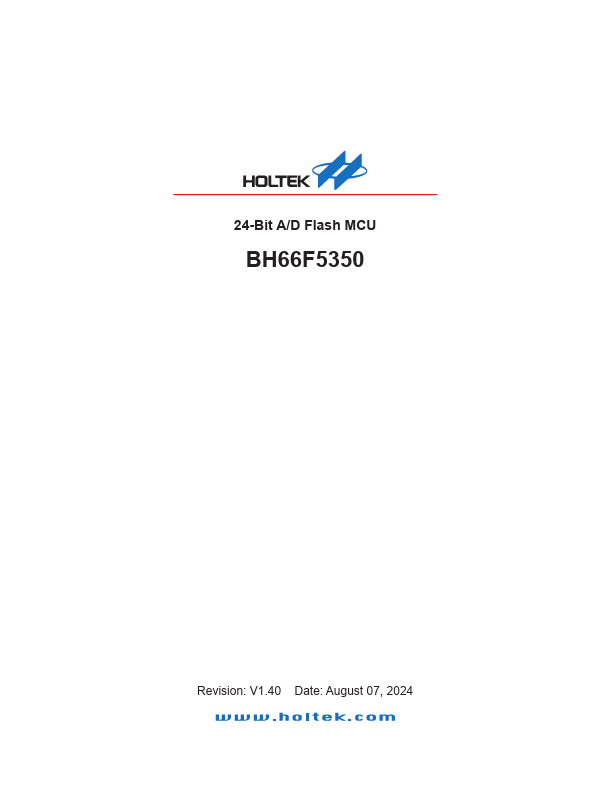

24-Bit A/D Flash MCU
Revision: V1.40 Date: August 07, 2024
BH66F5350 24-bit A/D Flash MCU

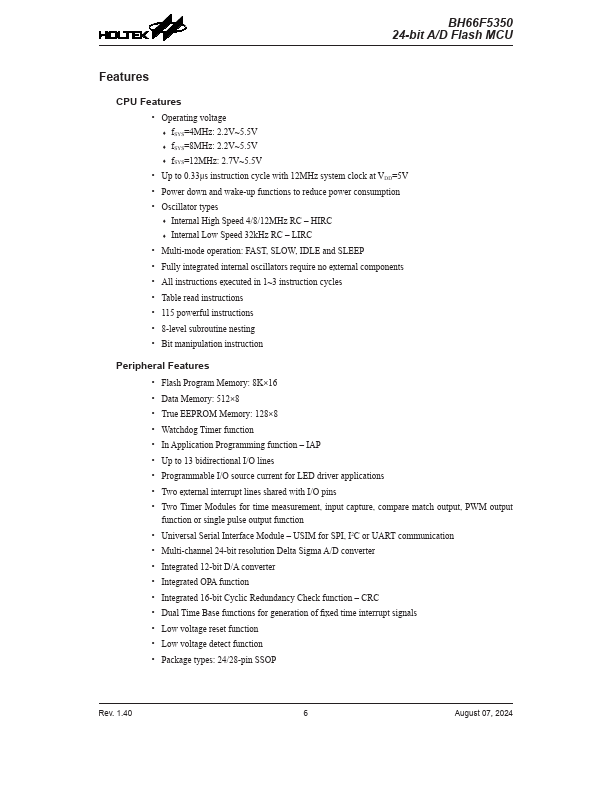

Features
CPU Features
- Operating voltage
- f SYS=4MHz: 2.2V~5.5V
- f SYS=8MHz: 2.2V~5.5V
- f SYS=12MHz: 2.7V~5.5V
- Up to 0.33μs instruction cycle with 12MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types
- Internal High Speed 4/8/12MHz RC
- HIRC
- Internal Low Speed 32k Hz RC
- LIRC
- Multi-mode operation: FAST, SLOW, IDLE and SLEEP
- Fully integrated internal oscillators require no external ponents
- All instructions executed in 1~3 instruction cycles
- Table read instructions
- 115 powerful instructions
- 8-level subroutine nesting
- Bit manipulation instruction
Peripheral Features
- Flash Program Memory: 8K×16
- Data Memory: 512×8
- True EEPROM Memory: 128×8
- Watchdog Timer function
- In Application Programming function
-...
