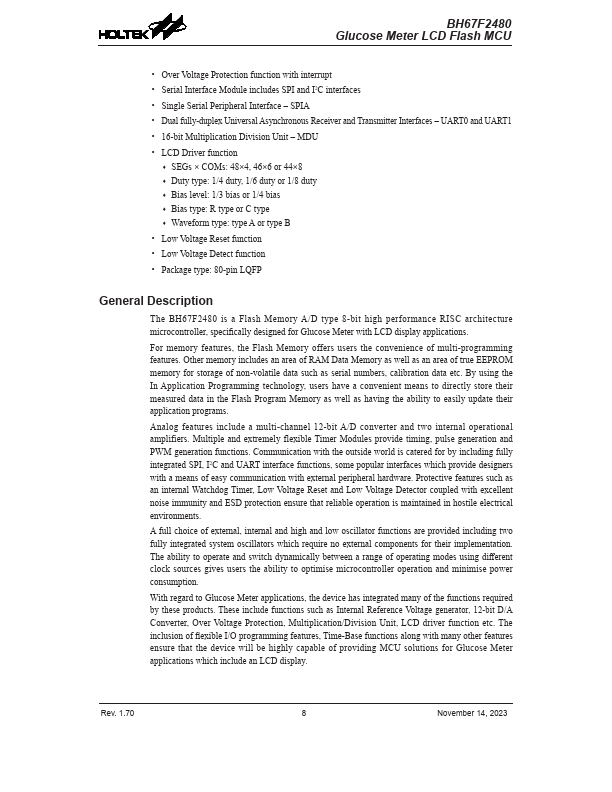

BH67F2480 Description
The BH67F2480 is a Flash Memory A/D type 8-bit high performance RISC architecture microcontroller, specifically designed for Glucose Meter with LCD display applications.

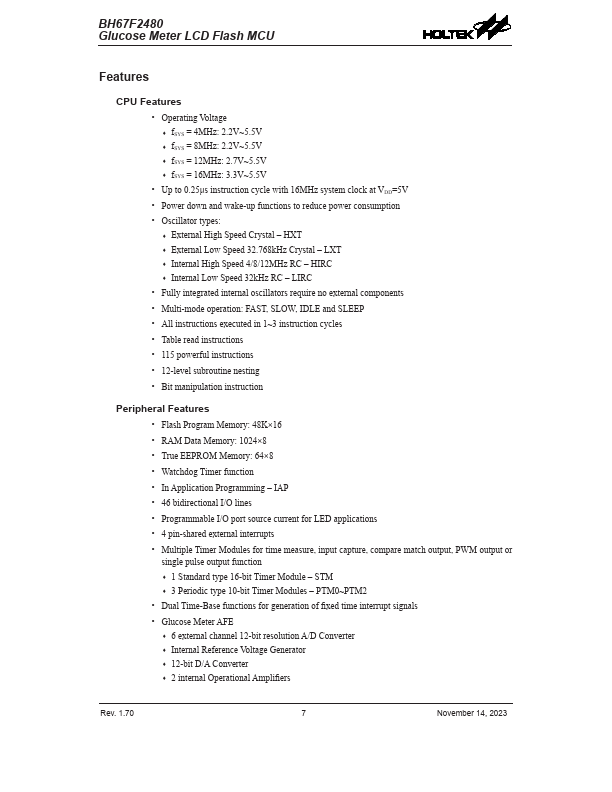

BH67F2480 Key Features
- Operating Voltage
- fSYS = 4MHz: 2.2V~5.5V
- fSYS = 8MHz: 2.2V~5.5V
- fSYS = 12MHz: 2.7V~5.5V
- fSYS = 16MHz: 3.3V~5.5V
- Up to 0.25μs instruction cycle with 16MHz system clock at VDD=5V
- Power down and wake-up functions to reduce power consumption
- Oscillator types
- External High Speed Crystal
- External Low Speed 32.768kHz Crystal
